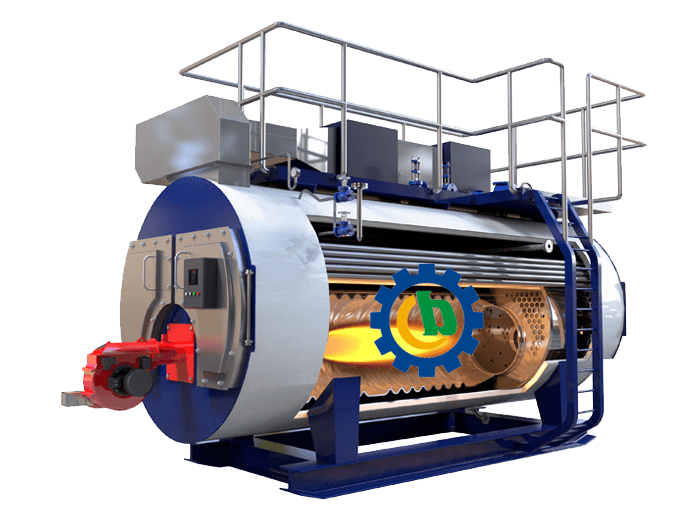

condensing-steam-boiler
SZS-gas-fired-steam-boiler

SZS Gas Fired Double Drums Steam Boiler

The SZS series boiler is a high-efficiency, safe, and low-emission gas/oil-fired steam boiler with advanced membrane wall design, ultra-low NOx combustion, and a service life of over 20 years.
Model: SZS
Rated Evaporation: 10-50T/H
Design Fuel: Diesel, Natural Gas, Heavy Oil, LPG, CNG, Fuel Oil, Biogas, City Gas, Methane Gas, etc.
Rated Steam Pressure: 1.25/1.6 Mpa
Rated Steam Temperature: 194/204℃
Social Media Home Page Links:
Introduction
Parameters
solution
recommend

Product Introduction

Main Features of SZS Series Gas/Oil Boilers

  1. Reliable Cooling – Forced circulation in high-temperature zones ensures uniform cooling and prevents vaporization.

  2. Safe Operation – Equipped with explosion-proof doors and flame detectors.

  3. Leak-Free Design – Comb-shaped plate seals prevent condensate and gas leakage; factory-tested for airtightness.

  4. Low Emissions & Quiet – Large furnace with ultra-low NOx (<30mg/Nm³) burner, internal flue insulation, and smoke-free micro-positive pressure combustion.

  5. Excellent Insulation – Aluminum silicate fiber and refractory cement keep furnace shell temperature below 45℃, minimizing heat loss.

  6. High Efficiency – Narrow-wall tube cold wall design improves air tightness and thermal efficiency.

  7. Durable Observation Ports – High-aluminum refractory materials prevent overheating damage.

  8. Easy Inspection – Fire viewing holes, rear inspection door, and accessible layout simplify cleaning and maintenance.

  9. Long Service Life – Membrane-structured front and rear walls last over 20 years.

  10. Enhanced Durability – Anti-shake fasteners and 100% radiographic inspection eliminate tube bundle fractures.

Gas Fired Double Drums Steam Boiler Technical Parameter

Model SZS10 SZS15 SZS20 SZS25 SZS30 SZS35 SZS40 SZS50
Rated Evaporation t/h 10 15 20 25 30 35 40 50
Rated Steam Pressure Mpa 1.25(1.6)
Rated Steam Temp. 194(204)
Rated Inlet Water Temp. 20(104)
Designed Heat Efficiency % 92.8 92.9 93 93 93.1 93.1 93.2 93.2
Designed Ambient Temperature 20
Weight T 30.6 40 45 48 52 59 65 70
Boiler Operating Water Volume T 8.2 10.8 13.3 15.4 19.5 23.2 28.6 32.5
Boiler Full Water Volume T 10 13.5 16.3 18.6 22.8 27.5 34.5 38.6
Burning Method   Micro Positive Pressure Chamber Combustion
Natural Gas Nm3/h 790.3
(691.1)
1173.2
(1016.6)
1545.3
(1342)
1950.2
(1700.2)
2340.6
(2035.6)
2730
(2381.2)
3115.4
(2710.5)
3898.2
(3395.6)
Diesel Oil Kg/h 679.3
(599)
1000
(895.3)
1323.9
(1161)
1698.5
(1496.5)
2039
(1801.2)
2380.2
(2101.1)
2705.6
(2385.4)
3398.4
(2999.2)
Transportation Size L mm 7700 9270 9650 9650 10850 11780 12820 12820
W 2750 3450 3530 3710 3890 4150 4270 4390
H 3680 3800 3950 4050 4200 4250 4300 4400
Installation Size L mm 9200 12340 12820 12820 13860 14790 15830 15830
W 4478 5800 6200 6450 6700 7000 7300 7600
H 4365 4450 4600 4700 4850 5000 5100 5200
Water Inlet DN mm 50 50 65 65 80 80 80 100
Main Steam Outlet DN mm 150 150 200 200 200 250 250 300
Secondary Steam Outlet DN mm 50 50 50 50 50 50 50 50
Manual Sewage Outlet DN mm 50 50 50 50 50 50 50 50
Continuous Sewage Outlet DN mm 40 40 40 40 40 40 40 40
Safety Valve DN mm 2*80 2*100 2*100 2*125 2*150 2*150 2*150 2*150
Chimney Diameter mm Ø800 Ø 950 Ø 1100 Ø 1200 Ø 1300 Ø 1400 Ø 1500 Ø 1650
Remark 1: Above all data according to standards of natural gas low position calorific value8400kcal/Nm, diesel low position calorific value 10250kcal/kg.
Remark 2: Due to continuous improvement, we reserve the right to modify the appearance& specifications. The above parameters are for reference only, please refer to the final drawing.
