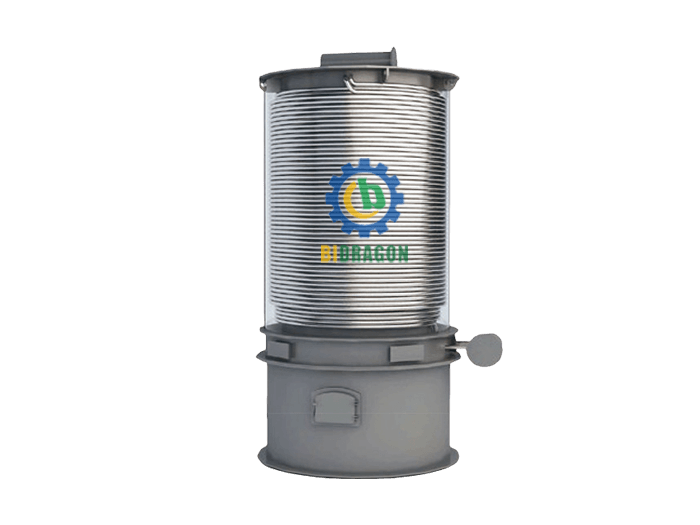

Manual Feeding Thermal Oil Boiler | High-Temperature, Low-Pressure Solid-Fuel Heater

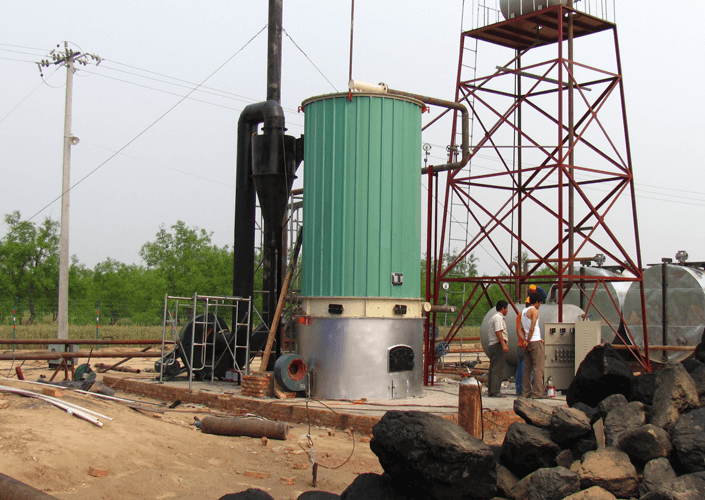

Product Introduction

Manual feeding thermal oil boiler with fixed grate combustion, hydraulic jacking system, spiral jacking system, reciprocal grate system, travelling grate system. This type thermal oil boiler also can use coal as fuels.

YGL manual feed thermal oil boiler can reach high temperature (max. 320℃) at low working pressure. It has stable heating performance and precise humidity control system, it also adpots a complete operating control system and safety monitoring devices.

Application:

1. Chemical industry – lipidic chemical industry, reaction jug, polymerization, distillation, enrichment.
2. Plastic industry – plastic firing, extrusion stereotypes.
3. Textile industry – resin stenters, dyeing machine and dry room, high temperature machine.
4. Rubber industry, rubber vulcanization heating.
5. Food industry – cooking, drying, vegetable oil refining.
6. Forest industry – plywood, glass-plate, chipboard of heating stereotypes, packaging cartons,
7. Paper industry – multi-layer cardboard, drying and dry.
8. And more – metal electroplating slot heating, coating condensation, drying, the pharmaceutical industry distillation, reduction, concentration, dehydration, etc.

Get in touch with us

Fixed Grate Thermal Oil Heater Technical Parameter

Vertical YGL-____F Horizontal YGW-____F
Model			120	240	35	500	700	1000	1200	1400	2000
Rated Thermal Power		kW	120	240	350	500	700	1000	1200	1400	2000
Rated Thermal Power		X104 Kcal	10	20	30	40	60	80	100	120	160
Heat Efficiency (≥%)		L	74.5	74.2	74.61	74.9	77.32	77.47	78.17	77.38	79.14
Heat Efficiency (≥%)		W	___	___	___	___	___	___	___	77.14	79.14
Design Pressure (Mpa)			1.1
Medium Max. Temp. (℃)			320
Circulation Oil Flow (m3/h)			12.5	20	30	40	60	80	100	100	160
Oil Capacity (m3)		L	0.08	0.12	0.28	0.36	0.61	0.68	0.93	1.2	1.69
Oil Capacity (m3)		W	___	___	___	___	___	___	___	1.1	1.69
Piping Connection Inner Diameter(DN)			50	50	65	65	100	150	150	150	150
Total Power (kW)			6.7	10	13	14.5	23.5	29	40.7	40.7	60
Dimension	L	L									3200
		W	Ø 1150	Ø 1300	Ø 1700	Ø 1700	Ø 1960	Ø 2050	Ø 2160	Ø 2290	Ø 2020
		H	2400	2650	3060	3480	3805	4415	4760	5445	6090
	W	L	___	___	___	___	___	___	___	3430	4800
		W	___	___	___	___	___	___	___	2020	2020
		H	___	___	___	___	___	___	___	3448	4025
Total Weight (kg)			1560	1960	3515	3801	4636	6043	7503	8822	12690
Total Weight (kg)			___	___	___	___	___	___	___	10874	16235
Remark: 1. L-Vertical W-Horizontal 2. Due to continuous improvement, we reserve the right to modify the appearance and specifications. The above parameters are for reference only; please refer to the final drawing. 3. Please contact us for more unlisted models; we can also customize new models according to user needs.
