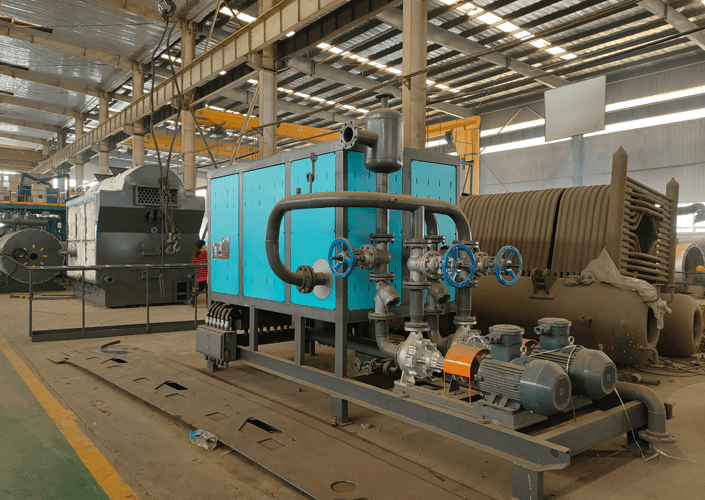

electric-thermal-oil-boiler

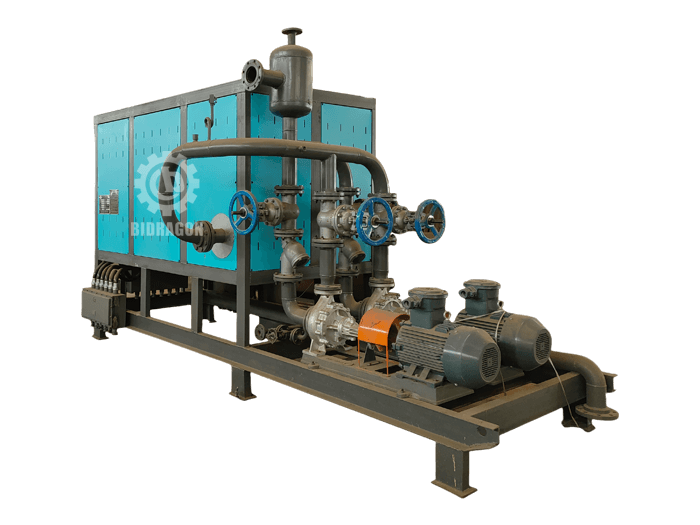

electric-thermal-oil-heater

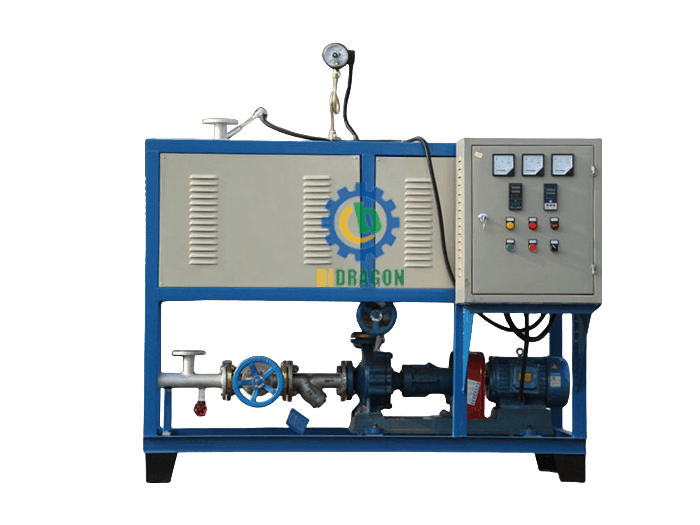

hot-oil-boiler

Electric Heating Thermal Fluid Boiler

Model: YDW
Fuel: electric
Boiler capacity:9-5600kW
Temperature: MAX.320°c
Designed Heat Efficiency: 98%
Social Media Home Page Links:
Introduction
Parameters
recommend

Product Introduction

Electric thermal oil boiler is also called electric hot oil heater or electric thermal fluid heater, which is an packaged boiler, composed with explosion protection system, heat ex-changer, control cabinet, oil pump, expansion tank, etc. Customer can use the electric thermal oil boiler only through offering powder, and connecting the medium outlet pipe and some electrical interface.
The thermal oil boiler adopts circulating pump to press the oil circular flow inside boiler, and transfer the heat to other equipment, and when the heat was released, the fluid oil will back into heater through circulating pump to absorb heat and re-transfer the heat to other equipment, in this cyclic operation, the thermal oil boiler finish heat transfer.
This hot oil heater adopts digital display temperature controller, which boiler has many function: Over-temperature alarm, low oil level alarm, super pressure alarm, etc.

Application:
Widely used in chemical, petroleum, plywood processing, printing and dyeing, food, road building, shipbuilding, textiles, films, etc., field.

Electric Heating Thermal Fluid Boiler Technical Parameter

Model YDW-9kW YDW-30kW YDW-60kW YDW-90kW YDW-120kW YDW-160kW YDW-180kW
Rated Thermal power kW 9 30 60 90 120 160 180
X104Kcal 0.8 2.5 5 8 10 13 16
Heat Efficiency(≥%) 97
Designed Pressure(Mpa) 1
Medium Max. Temp.(℃) 320
Circulation Oil Flow(m3/h) 3 12.5 12.5 25 25 30 30
Oil Capacity (m3) 0.06 0.025 0.05 0.11 0.11 0.11 0.13
Piping Connection Inner Diameter(DN) 25 50 50 50 50 65 65
Total Power(kW) 10.5 34.5 64.5 97 127 169 189

Transportation Size
L 1460 1950 1840 1840 1840 2000 2160
W 925 485 485 485 950 1137 1139
H 778 1387 1874 2064 1882 1636 1387
Weight (kg) 155 344 421 555 716 768 846

Model YDW-240kW YDW-300kW YDW-360kW YDW-480kW YDW-720kW YDW-750kW YDW-1000kW
Rated Thermal power kW 240 300 360 480 720 750 1000
X104Kcal 20 25 30 40 60 63 80
Heat Efficiency (≥%) 97
Designed Pressure(Mpa) 1
Medium Max. Temp.(℃) 320
Circulation Oil Flow(m3/h) 50 50 50 50 80 80 100
Oil Capacity (m3) 0.21 0.3 0.35 0.48 0.55 0.55 0.9
Piping Connection Inner Diameter(DN) 65 80 80 80 100 100 125
Total Power(kW) 256.5 316.5 376.5 496.5 743.5 773.5 1023.5

Transportation Size
L 2180 2350 2180 2230 2500 2500 3320
W 1120 1330 1120 1460 1500 1500 1770
H 2086 2100 2427 1990 2104 2104 2200
Weight (kg) 1168 1390 2162 2305 2900 2900 3184
Remark 1: Due to continuous improvement, we reserve the right to modify the appearance and specifications.
Remark 2: The above parameters are for reference only; please refer to the final drawing.
Remark 3, please contact us for more unlisted models, we can also customize new models according to user needs.
