YYW Series Horizontal Oil Gas Fired Thermal Oil Boiler System

Scan the QR code
YYW Series Oil Fired Thermal Oil Boiler is to use low pressure high temperature hot oil as heat source more safety than steam boiler, also it's convenient and precise for temperature control
Share to:
Oil Fired Thermal Oil Boiler Introduce
Technical Parameter
YYW Series Oil Fired Thermal Oil Boiler is to use low pressure high temperature hot oil as heat source more safety than steam boiler, also it's convenient and precise for temperature control.Hot oil as heat source saving water, also no need install water treatment equipment.Avoiding the terrible of high quality water of steam boiler.

The position between the burner joint and the coil is sealed with good seal, large flexible space, to increase the service life of burner and enhance the heating efficiency.

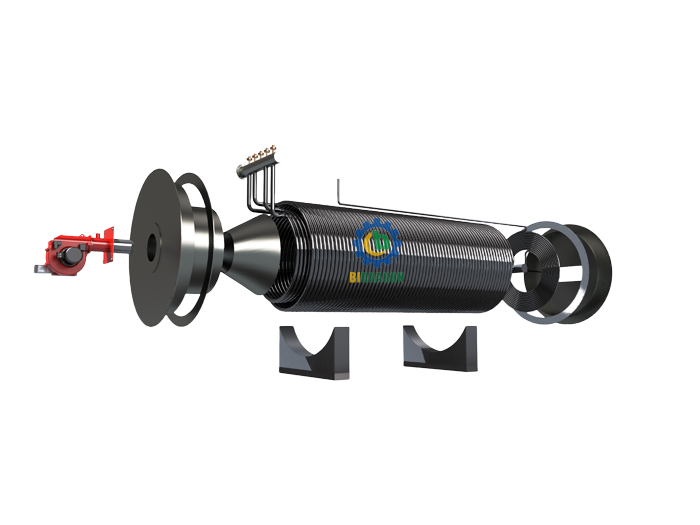

Triple coil structure is adopted by the boiler with three-pass flue gas, compact design and space-saving. Heating efficiency of the air pre-heater enhance up to 92% or more.
Multiple running with safety protection make boiler’s operation more safety and simply. High temperature control precision (± l℃) and good combustion effect.
Automatic control functions, to extend the service life of equipment while saving human resources.Hot oil inlet temperature display, hot oil outlet pressure display, hot oil inlet pressure display, expansion tank level control and so on, all these ensures our thermal oil boiler safty.

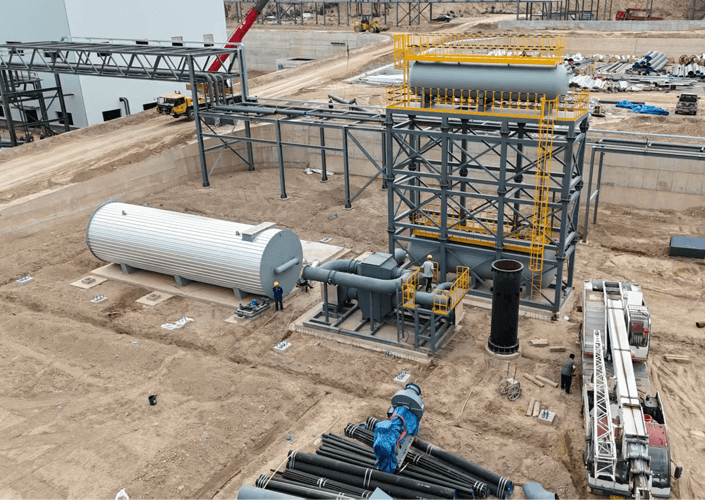

All the thermal oil heaters are assembly structure which is easy for installation by just connecting system device by pipes will be ok.

Horizontal Oil Gas Fired Thermal Oil Boiler Working Video:




Model

YY(Q)W
120Y(Q)

YY(Q)W
240Y(Q)

YY(Q)W
350Y(Q)

YY(Q)W
500Y(Q)

YY(Q)W
700Y(Q)

YY(Q)W
1000Y(Q)

YY(Q)W
1200Y(Q)

YY(Q)W
1400Y(Q)

YY(Q)W
2000Y(Q)

YY(Q)W
2400Y(Q)

Rated Thermal power

kW

120

240

350

500

700

1000

1200

1400

2000

2400

X104Kcal

10

20

30

40

60

80

100

120

160

200

Heat Efficiency(≥%)

Y

96.10

96.09

96.28

96.27

96.02

96

96.06

96.03

96.07

96.06

Q

98.05

98.04

98.23

98.20

98.53

98.52

98.16

98.53

98.55

98.50

Designed Pressure (Mpa)

1.1

Medium Max. Temp.(℃)

320

Circulation Oil Flow(m3/h)

12.5

18

30

30

60

80

100

100

160

160

Oil Capacity (m3)

0.09

0.12

0.29

0.38

0.52

0.57

0.74

0.92

1.55

1.77

Piping connection inner diameter(DN)

50

50

65

65

100

100

150

150

150

150

Total Power (kW)

4.7

7.2

9.5

9.8

17.6

18.0

25.7

26.5

44.0

53.5



Transportation Size

L

2180

2514

2769

3250

3540

3764

4374

5410

5640

5560

W

1290

1320

1650

1690

1710

1810

1810

1810

2022

2254

H

1575

1575

1993

2082

1880

2291

2321

2321

2480

2700

Weight (kg)

1550

1632

2745

3146

3771

4496

4993

5680

7700

8765



Model

YY(Q)W
3000Y(Q)

YY(Q)W
3500Y(Q)

YY(Q)W
4100Y(Q)

YY(Q)W
4700Y(Q)

YY(Q)W
6000Y(Q)

YY(Q)W
7000Y(Q)

YY(Q)W
8200Y(Q)

YY(Q)W
9300Y(Q)

YY(Q)W
12000Y(Q)

__

Rated Thermal power

kW

3000

3500

4100

4700

6000

7000

8200

9300

12000

__

X104Kcal

250

300

350

400

500

600

700

800

1000

__

Heat Efficiency (≥%)

Y

96.00

96.10

96.01

96.20

96.18

96.17

92.98

96.06

96.11

__

Q

98.02

98.03

98.06

98.07

98.04

98.08

92.15

98.39

98.05

__

Designed Pressure (Mpa)

1.1

Medium Max. Temp.(℃)

320

Circulation Oil Flow(m3/h)

180

200

250

250

350

400

350

500

600

__

Oil Capacity (m3)

1.96

3.78

4.61

5.70

7.40

8.35

9.50

10.20

13.30

__

Piping connection inner diameter(DN)

150

200

200

250

250

250

300

300

300

__

Total Power (kW)

77.2

87.2

111.7

120.2

164.2

165

202

198

200

__



Transportation Size

L

6194

6674

7456

7742

8990

9441

10484

10966

13500

__

W

2254

2610

2807

3240

3406

3390

3560

3610

3740

__

H

2700

3150

3402

3860

4117

4107

4230

4280

3850

__

Weight (kg)

10267

16743

17446

20669

29682

32311

34640

36852

49380

__

Remark 1: Above all data according to standards of natural gas low position calorific value8400kcal/Nm, diesel low position calorific value 10250kcal/kg.
Remark 2: Due to continuous improvement, we reserve the right to modify the appearance& specifications. The above parameters are for reference only, please refer to the final drawing.
Remark 3: Y for diesel oil fired, Q for gas fired.
