WNS Series Gas Fired Steam Boiler

Scan the QR code
Share to:
Main Technial Parameters
Introduction
Technical Parameter
Product thermal capacity: 1-20 t/h
Working pressure: 0.7-2 Mpa
Available fuel: Nature gas, coke oven gas, biogas, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.

WNS Series Gas Fired Steam Boiler Working Video:

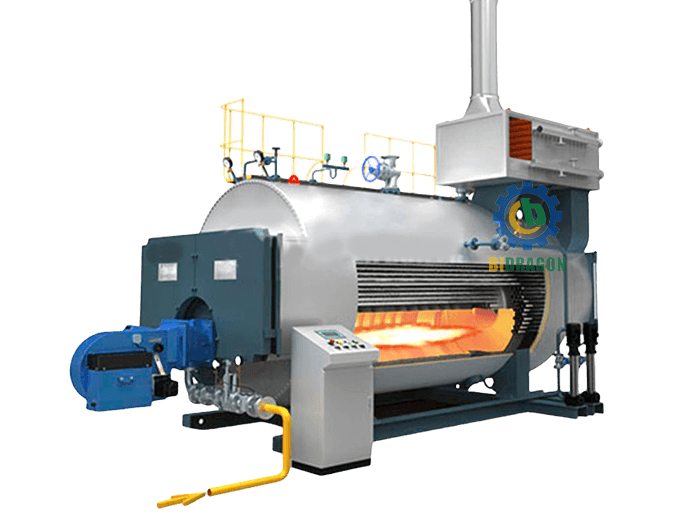

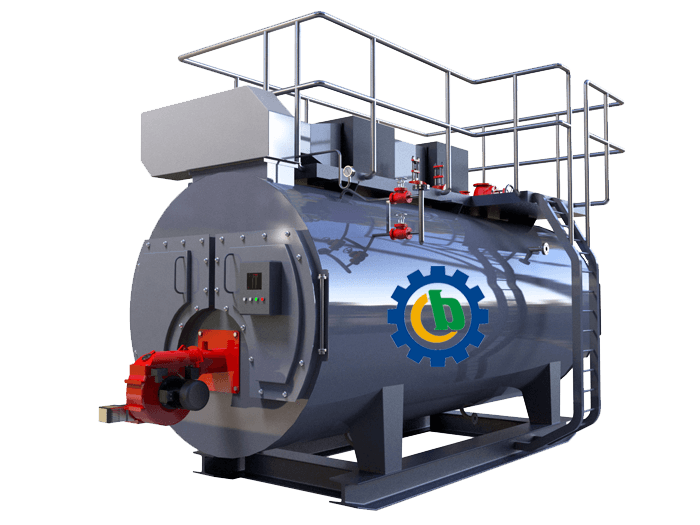

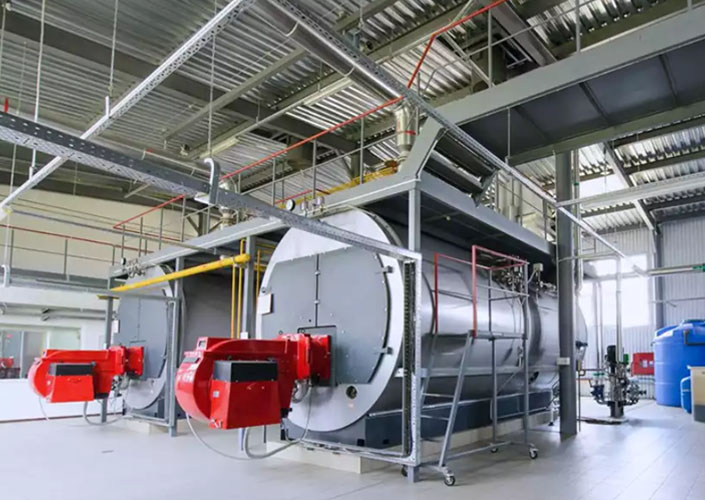

WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.
Model WNS1 WNS1.5 WNS2 WNS3 WNS4 WNS6 WNS8 WNS10 WNS12 WNS15 WNS20
Rated Evaporation t/h 1 1.5 2 3 4 6 8 10 12 15 20
Rated Steam Pressure Mpa 1.25(1.6)
Rated Steam Temp. 194(204)
Rated Inlet Water Temp. 20 20(104)
Heating Area Of Boiler Body m2 25.5 39.1 51.3 82.3 105 160.7 205.9 246.1 287.2 384.8 492.3
Energy Saver Heating Area m2 6 8.9 10.8 17.1 20.2 26.4 41.7 40.3 46.4 49.8 66.1
Designed Heat Efficiency % 92.2 92.5 93.2 92.8 92.4 92.5 92.7 92.2 92.8 92.8 92.7
Designed Ambient Temperature 20
Weight T 6.3 8.1 9.5 12.2 13.5 18.9 23.5 25.6 26.8 35 42.5
Boiler Operating Water Volume T 2.8 3.7 4.7 6.6 8.1 11.5 15.3 18.9 20.7 28.1 37.8
Boiler Full Water Volume T 3.4 4.5 5.9 7.9 9.6 12.7 18 22.3 24 31.6 33.9
Boiler Water Supply Method   Positional Water Supply Proportional Water Supply
Burning Method   Micro Positive Pressure Chamber Combustion
Natural Gas Nm3/h 80.1 118.7 160.1 236 314.8 479.8
(407.8)
631.7
(553.3)
709.3
(691.1)
944.5
(825.3)
1173.2
(1016.6)
1545.3
(1342)
Diesel Oil Kg/h 68.2 101.9 136.2 200.7 271.8 408.8
(347.3)
546.7
(476.4)
679.3
(599)
803.7
(711.9)
1000
(895.3)
1323.9
(1161)
Transportation Size L mm 3900 4800 4300 4690 5250 6100 6200 6853 6950 7520 8030
W 1900 2090 2100 2350 2550 2710 2920 3210 3310 3620 3780
H 2110 2240 2400 2502 2750 2980 3280 3500 3630 3820 4100
Installation Size L mm

4630 4750 5100 5680 6350 7450 7700 8230 8355 9580 10560
W 2800 2990 3000 3250 3450 3610 3820 4110 4210 4520 5000
H 3630 3760 3900 4030 4600 4900 5200 5650 5850 5900 6000
Water Inlet DN mm 32 32 40 40 40 40 50 50 50 65 65
Main Steam Outlet DN mm 50 65 80 80 100 125 150 150 150 200 200
Secondary Steam Outlet DN mm 32 32 40 40 40 50 50 50 50 65 65
Manual Sewage Outlet DN mm 40 40 50 50 50 50 2*50 2*50 2*50 3*50 3*50
Continuous Sewage Outlet DN mm -- -- -- -- -- -- -- 40 40 40 40
Safety Valve DN mm 2*40 2*40 2*40 2*50 2*50 2*65 2*80 2*80 80*100 2*100 2*150
Chimney Diameter mm Ø300 Ø 350 Ø 400 Ø 450 Ø 500 Ø 600 Ø 700 Ø 800 Ø 900 Ø 1000 Ø 1200
Remark 1: Above all data according to standards of natural gas low position calorific value8400kcal/Nm, diesel low position calorific value 10250kcal/kg.
Remark 2: Due to continuous improvement, we reserve the right to modify the appearance& specifications. The above parameters are for reference only, please refer to the final drawing.
