Product Introduction

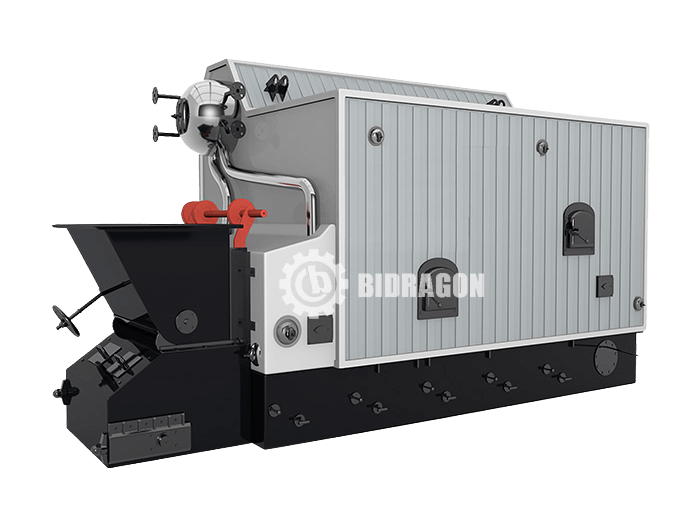

SZL series biomass steam boiler is a double-drum, horizontal water tube boiler with chain grate combustion. It adopts modular assembly—small capacity models are quick-assembly type, while larger ones are split into upper heating and lower combustion sections. The boiler features water walls, steam-water separator, blowdown device, and an economizer for improved efficiency. It is suitable for burning various biomass fuels like wood chips, rice husk, bagasse, and coconut shell, making it ideal for industries such as textiles, food, and chemicals.Compared with coal-fired boilers, biomass fuels have lower cost and lower operating cost.

Get in touch with us

Water Tube Biomass Boiler Technical Parameter

Model	Rated Evaporation Capacity (t/h)	Rated Pressure	Steam Temperature (℃)	Supply / Return Water Temperature(℃)	Overall Dimension of biggest part for transfortation
Model	Rated Evaporation Capacity (t/h)	(MPa)	Steam Temperature (℃)	Supply / Return Water Temperature(℃)	LWH（mm）
SZL2-0.8/1.0/1.25/1.6/2.5-T	2	0.8/1.0/1.25/1.6/2.5	175/184/194/204/226	20/70	5500×2350×3650
SZL4-1.0/1.25/1.6/2.5-T	4	1.0/1.25/1.6/2.5	184/194/204/226	20/70	7730×2360×3520
SZL6-1.0/1.25/1.6/2.6-T	6	1.0/1.25/1.6/2.5	184/194/204/226	20/70	up 6150×2840×3540	down 7275×2852×2580
SZL8-1.0/1.25/1.6/2.7-T	8	1.0/1.25/1.6/2.5	184/194/204/226	20/70	up 6971×2933×3540	down 8056×2945×2580
SZL10-1.0/1.25/1.6/2.8-T	10	1.0/1.25/1.6/2.5	184/194/204/226	20/70	up 7855×3240×3540	down 9025×3200×2580
SZL15-1.0/1.25/1.6/2.9-T	15	1.0/1.25/1.6/2.5	184/194/204/226	20/70	Up 10000×3240×3540	down 12000×3200×3080
SZL20-1.0/1.25/1.6/2.10-T	20	1.0/1.25/1.6/2.5	184/194/204/226	20/70	up 11000×3240×3540	down 14000×3200×3080
Note: Parameter is for reference only, if any changes should follow the actural drawing
