Industrial boilers serve as core equipment within factory production lines; their stable operation directly impacts the entire manufacturing process. What many may not realize is that air trapped within a boiler system can quietly undermine the equipment's normal functioning.
Venting—the process of releasing trapped air—is one of the most fundamental yet frequently overlooked aspects of routine boiler maintenance. Many factories only remember to vent their boilers when obvious malfunctions arise; by that time, however, the oversight has often already resulted in unnecessary energy waste and accelerated equipment wear.
This article provides a comprehensive overview of industrial boiler venting, covering everything from the causes of air accumulation to specific operational procedures and troubleshooting solutions for common issues. Whether you are a factory maintenance manager, a boiler operator, an HVAC engineer, or an equipment procurement specialist, you will find valuable information within these pages.
.png)
Simply put, boiler venting is the process of expelling trapped air from the boiler vessel itself and its connected piping.
A boiler system functions as a closed-loop water circulation system; ideally, it should contain nothing but water. In actual operation, however, air inevitably enters and becomes trapped in various nooks and crannies throughout the system. This trapped air obstructs the normal circulation of water and impairs heat transfer efficiency.
The objective of venting is to purge this excess air, thereby maintaining stable internal system pressure and ensuring the smooth flow of hot water or steam through the piping.
There are numerous ways for air to enter a boiler system.
The most common entry point is during the initial filling process. When a newly installed boiler—or one that has just undergone a major overhaul—is filled with water for the first time, the piping is initially packed with air; during the filling process, it is virtually impossible to expel every last pocket of air.
System restarts following maintenance are another major contributor. Any maintenance work involving the disassembly of piping components creates an opportunity for air to enter the system. Even a simple task, such as replacing a single valve, can allow air to infiltrate.
Water pump operation can also introduce air. If a pump's seals are worn out or improperly installed, the pump may draw in small amounts of air while running; this air is then carried along by the circulating water and gradually accumulates at the highest points within the system.
Piping leaks can similarly lead to air infiltration. When a minute leak develops in a specific section of the system—particularly when the internal system pressure drops below atmospheric pressure—air will be drawn inward through the leak point.
Extended periods of system shutdown can also allow air to enter the system. During the boiler's shutdown period, the water within the system cools and contracts, creating negative pressure; consequently, external air enters through various gaps.
When a boiler requires bleeding, it will exhibit several distinct warning signs.
The most easily detectable sign is unusual noise within the piping. You might hear a "gurgling" sound from the flowing water, or a "clanging" noise resembling metal striking metal. This phenomenon is often referred to as "water hammer"—a percussive force generated by air creating turbulence in the water flow or by the bursting of air bubbles. If left unchecked over time, this can loosen pipe joints and even lead to cracks in weld seams.
Localized lack of heating is another classic symptom. If you notice that certain radiators or heating zones are significantly cooler than others, it is highly likely that air has become trapped in the supply lines leading to that specific area, preventing the hot water from circulating properly. In multi-zone systems, if the temperature in one zone is 5–10 degrees Fahrenheit lower than the others, it is a strong indication that an air blockage is present.
Fluctuations in system pressure are also worth noting. Accumulated air occupies space within the system, causing the pressure gauge readings to become unstable—rising and falling erratically. These pressure fluctuations become particularly pronounced when the boiler cycles on and off. Furthermore, frequent tripping of safety relief devices is often linked to sudden pressure surges caused by the compression of trapped air.
A decline in thermal efficiency is a signal that is easily overlooked. Air is a far poorer conductor of heat than water; consequently, when a layer of air adheres to the inner walls of the piping, heat transfer is significantly impeded. Industry testing indicates that in medium-sized boiler systems, if accumulated air is not addressed, heating output can drop by 10–15%, resulting in a corresponding increase in fuel consumption.
Abnormal operation of the circulation pump may also be a symptom of trapped air. When air enters the pump housing, it prevents the impeller from effectively driving the water flow; this can cause the pump to emit unusual noises or even result in "dry running" (operating without fluid).
.png)

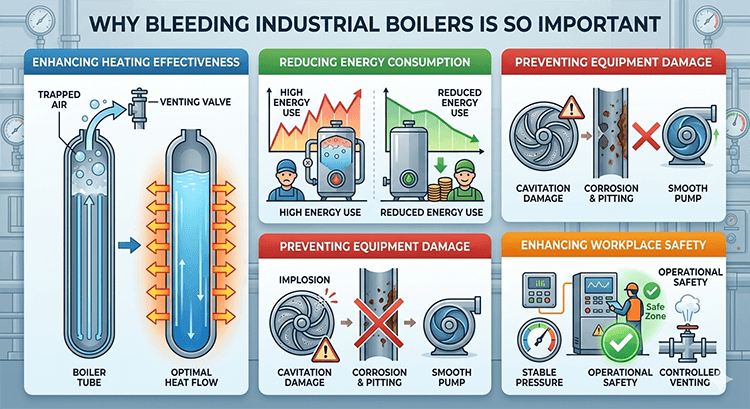

Many people view bleeding the boiler as a minor task—something that can be skipped without any significant repercussions. In reality, however, the presence of trapped air poses a multifaceted threat to the integrity and performance of a boiler system.
Air acts as a barrier to heat transfer. When air is present within the piping, hot water is forced to flow around the air bubbles rather than making full contact with the inner walls of the pipes. This leads to uneven heat distribution and the creation of numerous "dead zones"—areas where temperatures remain low, failing to meet the specific process requirements of the facility. Once air has been purged, hot water can completely fill the entire piping network, ensuring full contact with the pipe walls and facilitating smoother heat transfer. Consequently, the temperature throughout the heating system becomes more uniform, thereby better meeting the specific requirements of production processes. Real-world case studies from textile mills demonstrate that, following a comprehensive air-purging procedure, system thermal efficiency improved by 12%, and temperature differentials within the workshop were successfully maintained within a reasonable range.
Accumulated air causes boilers to perform a significant amount of unproductive work. To reach the desired temperature setpoint, the boiler must operate for longer durations and consume greater quantities of fuel.
According to industry statistics, boilers suffering from severe air accumulation can experience a 5–20% increase in fuel consumption, with the exact figure depending on the size of the system and the severity of the air buildup. Regular air purging eliminates this unnecessary waste, thereby lowering the facility's energy costs.
Furthermore, air accumulation increases the operational load on the boiler. The boiler is forced to expend constant energy on heating and pressurization to overcome the resistance created by the trapped air. This accelerates wear and tear, shortening the boiler's service life and driving up maintenance costs.
Air has a corrosive effect on metal piping and equipment. The oxygen present in the air reacts chemically with metal surfaces, leading to the formation of rust. This rust is then carried through the system by the water flow, potentially clogging pipes and valves, and causing abrasive wear on pump impellers. Over time, this oxidative corrosion can create pinhole leaks in the pipe walls, which may eventually develop into major pipe ruptures.
Even more serious is the phenomenon of cavitation. When a pump impeller rotates at high speed, air bubbles trapped within the water can suddenly collapse under high pressure, generating powerful shockwaves. These shockwaves repeatedly impact the impeller's surface; over time, this causes pitting and surface erosion, ultimately leading to pump failure.
Regular air purging reduces the oxygen content within the system, thereby mitigating the risks of corrosion and cavitation, and extending the service life of pumps, valves, and piping.
Air accumulation increases the risk of system overpressure. Because air is significantly more compressible than water, any trapped air will expand rapidly as the system temperature rises, causing a sudden surge in system pressure.
If the pressure exceeds the setpoint of the safety relief valve, the valve will automatically open to vent the excess pressure. However, if the safety valve malfunctions, a catastrophic accident—such as a pipe rupture or even a boiler explosion—could occur.
Additionally, air accumulation can lead to sudden and unexpected system shutdowns. When air blocks critical piping, water circulation is interrupted, causing the boiler to automatically shut down due to overheating. This results in significant production losses for the facility, particularly in industries requiring continuous operations. In large-scale steam systems, unexpected downtime caused by air accumulation and steam trap failures can lead to tens of thousands of dollars in annual energy and production losses.
Once the necessary preparations are complete, you can begin the air-bleeding operation. Following the steps below will ensure a safe and smooth process.
First, turn off the burner and cut off the fuel supply to stop the boiler from heating. Then, shut down the circulation pump to halt the flow of water within the system.
Implement the Lockout/Tagout (LOTO) procedure by attaching warning tags to the main power switch and fuel valves to prevent accidental operation by others.
Wait for the system to cool down completely; use a thermometer to confirm that the surface temperature has dropped to a safe range. Do not rush the process—safety comes first.
Air bleed valves are typically installed at the highest points of the system because air, being lighter than water, naturally rises to these locations.
Common locations for air bleed valves include:
Some large-scale systems may have a dozen or more air bleed valves; these should be marked on the system schematic in advance and prioritized in an order ranging from lowest to highest elevation, and from nearest to farthest proximity.
It is recommended that this operation be performed by a two-person team: one person is responsible for opening and closing the air bleed valves, while the other monitors the system pressure at the boiler control panel and records the readings.
Place a catch container beneath the air bleed valve to prevent water from spilling onto the floor.
Using a specialized wrench, slowly turn the air bleed valve counter-clockwise. Open it just enough to create a small gap; do not open it fully all at once.
You will hear a "hissing" sound, indicating that air is being expelled. When the sound ceases and a steady, bubble-free stream of water begins to flow out, it indicates that all the air at that specific location has been successfully purged.
Use the wrench to tighten the air bleed valve clockwise, ensuring there are no leaks.
Proceed to perform this same operation on all remaining air bleed valves, following the predetermined sequence. After bleeding each valve, record the corresponding pressure change; under normal conditions, the system pressure will drop by 2–5 psi after bleeding the air from a specific zone.
During the air-bleeding process, the system pressure will continue to drop. Continuously monitor the pressure gauge readings to ensure the pressure does not drop below the normal operating range.
If the pressure falls below the specified value, slowly add water to the system via the makeup water valve to restore the pressure to the standard level. Avoid adding water too rapidly, as this may introduce fresh air into the system.
Once all air vents have been operated, re-check the system pressure and adjust it to the operating pressure specified by the manufacturer.
Once you have confirmed that all air vents are closed, there are no leaks, and the system pressure is normal, you may remove the lockout/tagout devices and restart the boiler.
First, switch on the circulation pump to allow water to circulate through the system for 10–15 minutes; this allows any residual micro-bubbles to accumulate at the system's high points. Then, start the burner to begin the heating process gradually.
Do not raise the temperature to the maximum level immediately; a gradual increase in temperature helps minimize the generation of new air bubbles.
After starting the boiler, continuously monitor the system for at least 30 minutes to confirm that it is operating normally.
Listen for any unusual noises within the piping. If faint "gurgling" sounds persist, wait until the system temperature has stabilized, then perform a supplementary air-venting procedure at the system's high points.
Verify that the temperatures across the various heating zones are uniform. Use an infrared thermometer to measure the temperatures of pipes and radiators at different locations; the temperature differentials should fall within a reasonable range.
Observe the pressure gauge readings to ensure they remain stable. If the pressure continues to fluctuate significantly or shows a steady decline, a leak or other underlying issue may be present, requiring further investigation.
For different types of boiler systems, the sequence of air venting and the associated precautions may vary; therefore, the operating procedures must be tailored to the specific system.
Steam boilers operate at higher pressures; consequently, extreme caution must be exercised during air venting, and safety protocols must be strictly adhered to.
The air-venting sequence should begin with the condensate return lines, followed by the low-pressure steam lines, and finally, the main steam header. The steam traps should be vented last; this prevents air from re-accumulating within the system during the venting process.
For high-pressure steam boilers, the air-venting process may take 1–2 hours; do not attempt to rush the procedure. Execute each step slowly and carefully, while closely monitoring the pressure fluctuations. Regularly inspect the operational status of steam traps; a malfunctioning trap can lead to significant steam leakage while also preventing the proper venting of air, thereby compromising system efficiency.
The primary focus of air venting for hot water boilers lies within the various circulation loops.
Begin by venting air from the heat exchangers, supply and return headers, and the extremities of the system, as these locations are most prone to airlocks. For multi-zone hot water systems, prioritize venting the zone located furthest from the boiler, then proceed sequentially toward the boiler.
Perform air venting while maintaining an operating pressure of approximately 15 psi; this pressure ensures that water reaches the highest points of the system without being so high as to cause water to spray out forcefully.
If the system is equipped with automatic air vents, conduct periodic manual checks to prevent the automatic valves from becoming clogged or malfunctioning.
There is no fixed standard for the frequency of air venting; it must be determined based on the specific conditions of the boiler.
For boilers operating continuously under heavy loads, a comprehensive air venting procedure is recommended once per quarter. For boilers with lighter loads or those operating seasonally, venting should be performed once prior to each startup and again one month into operation.
For newly installed boilers or those that have undergone major overhauls, monthly inspections are recommended during the first three months of operation, as this is the period when air accumulation within the system is most likely to occur.
Regardless of usage frequency, a visual inspection of the system should be conducted every quarter to check pressure gauges, valves, and connections for any anomalies.
Several factors can influence the rate at which air accumulates within a boiler system.
The boiler type is a significant factor; hot water boilers tend to accumulate air more readily than steam boilers and therefore require more frequent venting.
System scale also plays a role; larger, more complex boiler systems—featuring longer piping runs and a greater number of elbows—are more prone to air accumulation and consequently require more frequent venting.
Water quality is equally important; poor water quality, characterized by a higher concentration of dissolved gases, increases the likelihood of air accumulation.
Usage frequency also affects venting requirements; boilers that undergo frequent startups and shutdowns are more susceptible to air accumulation than those operating continuously.
In addition to regular air venting, several preventive measures can be implemented to minimize air accumulation within the system.
Regularly inspect automatic air vents. Automatic air vents automatically purge air from the system; however, over time, they may become clogged by limescale or rust. They should be inspected every six months, and any damaged components should be cleaned or replaced.
Installing an air separator at the water pump outlet effectively captures dissolved gases within the water. When used in conjunction with automatic air vents positioned at the system's highest points, this setup can reduce the workload associated with manual air venting by approximately 50%. For older systems, these components can also be retrofitted during system upgrades.
Develop a comprehensive water treatment plan. Proper water treatment reduces the concentration of dissolved gases in the water, thereby mitigating the risks of corrosion and scale formation.
Periodically inspect the integrity of pipe seals. Promptly replace aging seals and packing materials to prevent air from entering the system through leak points.
Conduct a professional system audit every six months—including flow and pressure testing—to identify potential issues in advance and ensure the system operates with maximum efficiency.
Purging industrial boilers is a fundamental yet critical maintenance task that directly impacts heating efficiency, equipment longevity, and operational safety.
Many facilities frequently overlook this procedure, addressing it only after malfunctions have already manifested—a reactive approach that ultimately drives up repair costs and causes production disruptions.
Establishing a preventive maintenance plan that incorporates regular purging can consistently boost system efficiency by 10–15% and extend the boiler's service life by 20–30%.
If your system experiences frequent air accumulation or if you have any maintenance-related inquiries, please contact a professional agency to obtain customized consultation and solutions.
Can Air Inside a Boiler Damage The System?
Yes, it can. Air can cause corrosion in pipes and equipment, leading to pinhole leaks, and can also induce cavitation in pumps. All of these issues damage boiler system components and shorten the equipment's service life. Severe air accumulation can also lead to system overpressure, potentially triggering safety incidents such as pipe ruptures.
How Long Does It Take To Vent An Industrial Boiler?
The venting time depends on the size of the system and the extent of the trapped air. Small boiler systems may require only 10 to 20 minutes to vent completely. Larger, more complex systems may take several hours, while a comprehensive venting of a high-pressure steam boiler could take as long as half a day.
Should The Boiler Be On Or Off When Venting?
The boiler must be shut down when venting. Not only must the burner be turned off, but the circulation pump must also be shut down, and Lockout/Tagout procedures must be implemented. Furthermore, you must wait until the system has completely cooled down before proceeding with the operation. Venting under high-temperature and high-pressure conditions is extremely dangerous, as you could suffer burns from ejected hot water or steam.
What Is The Normal Operating Pressure For An Industrial Boiler?
Normal operating pressures vary depending on the specific type and specifications of the boiler. Generally, low-pressure hot water boilers operate within a range of 0.1 to 0.3 MPa (15–45 psi). The operating pressure for steam boilers is determined by the requirements of the specific production process, ranging from 0.3 MPa up to several MPa. You can find the exact pressure specifications on the boiler's nameplate or in its operating manual.
Can i Vent An Industrial Boiler Myself?
For small industrial boilers with simple structures, trained operators can perform the venting procedure themselves. However, for large or complex systems, high-pressure steam boilers, or situations where venting issues persist despite repeated attempts, it is recommended to enlist the help of a professional technician to avoid safety incidents caused by improper operation.
When Should i Call a Professional Technician?
It is recommended to contact a professional boiler technician in the following situations:
