Steam plays an indispensable role in modern industrial systems. Whether it's material processing in industrial production, ensuring heating in factories and commercial spaces, sterilization operations in the medical field, or various precision processes, a stable and reliable steam supply is essential.
As a device that uses electricity to generate steam, the electric steam boiler achieves clean steam production through efficient energy conversion. It eliminates the dependence on fossil fuels by traditional oil and gas boilers, achieving a significant breakthrough in the environmental friendliness and efficiency of steam supply.
Today, more and more industries are choosing electric-driven steam boilers. The core reason is that it precisely matches the global pursuit of low-carbon production while meeting the stringent requirements for steam quality and supply stability in industrial scenarios, providing solid support for the sustainable operation of various industries.

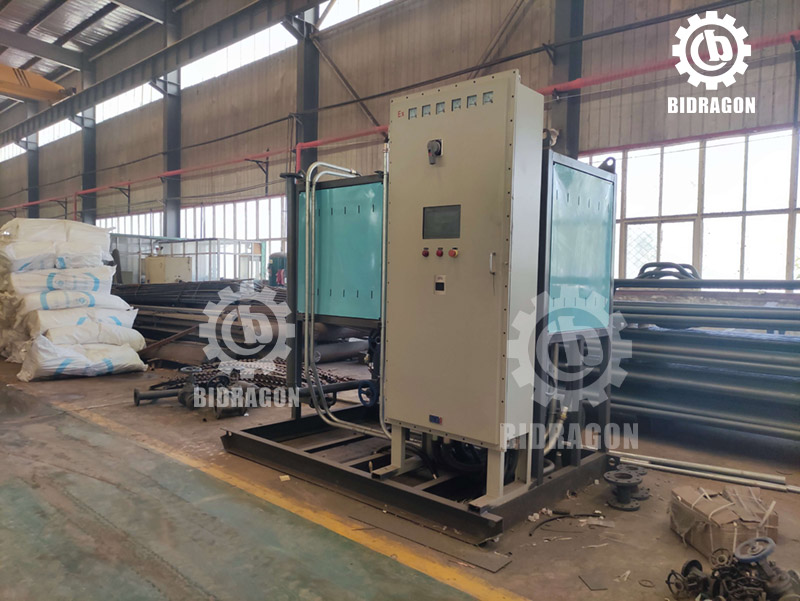

An electric steam boiler is a thermal energy device that uses electricity to heat water to a vaporized state through heating elements, thereby continuously generating steam that meets industrial or commercial needs. Its entire workflow eliminates the need for combustion, achieving high-efficiency operation through the direct conversion of electrical energy to thermal energy. The structure of this equipment has been optimized over a long period to form a stable system, with all components working together to ensure a continuous supply of steam.
The water tank and steam chamber are the basic load-bearing components, responsible not only for storing sufficient production water but also for providing a sealed space for water to be converted into steam. Their volume and pressure resistance are customized according to different steam demand requirements, ensuring a stable source of steam generation under various operating conditions. The electric heating element is the core of energy conversion, typically using a metal heating element to efficiently convert input electrical energy into heat energy. Its power configuration directly determines the boiler's steam production efficiency, while the material selection must consider high-temperature resistance and corrosion resistance to extend its service life.
The control and safety system is the "central nervous system" of the equipment, integrating components such as temperature sensors, pressure controllers, and automatic regulating valves. On the one hand, it enables precise management of steam temperature and pressure and automated control of the entire operation process; on the other hand, it can quickly trigger protection mechanisms in case of abnormal conditions such as over-temperature or over-pressure, ensuring equipment safety.
The power and wiring system provides the energy foundation for equipment operation. Through reasonable wiring design and load distribution devices, it ensures the stability of the power supply, preventing damage to heating elements and control systems caused by voltage fluctuations or uneven load, and maintaining continuous and stable operation of the equipment.
The operation of the electric steam boiler is highly automated and streamlined, with each stage closely linked to achieve efficient steam production. In the initial stage of operation, the equipment automatically fills with water through the water replenishment system. This system precisely controls the water intake based on feedback from the water level sensor in the tank, ensuring that the water level in the tank is always maintained within a reasonable range, meeting steam production needs while avoiding water waste.
Once the water level reaches the preset standard, the electric heating element immediately starts, directly converting the incoming electrical energy into heat energy. This energy conversion method bypasses the intermediate energy transfer links of traditional combustion boilers, significantly improving energy utilization efficiency. The heat energy generated by the heating element is directly transferred to the water in the tank, causing the water temperature to continuously rise in the closed environment. As heat accumulates, the water gradually reaches its boiling point and undergoes a vaporization reaction, ultimately forming saturated steam.
After steam is generated, the equipment monitors the pressure inside the steam chamber in real time using pressure sensors. When the pressure reaches a preset value, the steam delivery valve automatically opens, smoothly delivering steam that meets the pressure and temperature requirements to industrial production equipment, heating systems, or other commercial steam terminals, providing power or thermal energy support for various production and living scenarios.
Throughout the process, the control system monitors key parameters such as water level, temperature, and pressure in real time, flexibly adjusting the operating status of the heating elements and the steam delivery volume according to actual steam demand to achieve a balance between supply and demand.
Electric steam boilers exhibit significant advantages in energy conversion efficiency. Their core lies in the direct conversion of electrical energy to thermal energy, eliminating the chemical energy conversion losses present in traditional boiler combustion. High-quality electric steam boilers can achieve an electrical energy conversion efficiency of over 95%, with some high-performance models approaching 100%. This means that the vast majority of the input electrical energy can be effectively converted into the thermal energy required to heat the water, with minimal energy waste.
Compared to oil and gas boilers, electric steam boilers do not require consideration of energy losses due to incomplete combustion, nor do they suffer from heat loss due to flue gas emissions, resulting in more concentrated energy utilization. Furthermore, the electric heating elements have extremely fast response times, reaching rated heating power from startup in just a few minutes, enabling rapid response to fluctuations in steam demand.
In scenarios with significant changes in production load, the heating power can be flexibly adjusted to achieve immediate steam supply, avoiding the energy waste caused by long preheating times in traditional boilers, further improving overall operating efficiency. This highly efficient energy conversion characteristic makes electric steam boilers stand out in energy cost control, especially in regions with relatively stable electricity prices, bringing significant energy cost savings to enterprises.
Environmental friendliness is one of the core advantages that distinguishes electric steam boilers from traditional fossil fuel boilers. Their operation relies entirely on electricity, requiring no fuel combustion, thus producing no sulfur dioxide, nitrogen oxides, particulate matter, or other air pollutants, achieving zero emissions and eliminating pollution at its source. This environmental advantage allows them to easily adapt to increasingly stringent global environmental regulations, giving them an irreplaceable position in industries with high environmental requirements such as food processing, medical, and pharmaceuticals.
In terms of operation, electric steam boilers also perform excellently. Lacking a combustion mechanism and flue gas emission system, the noise level during operation is extremely low, typically below 60 decibels, effectively improving the working environment in production workshops and reducing the impact of noise pollution on operators.
Compact structure is another major advantage. Compared to oil-fired or gas-fired boilers with the same steam output, electric steam boilers require over 30% less floor space. They eliminate the need for separate fuel storage rooms and flue gas treatment facilities, significantly saving factory space, making them particularly suitable for small and medium-sized enterprises with limited space.
Furthermore, the simple structural design simplifies installation. No complex piping or combustion system commissioning is required; typically, trial operation can begin after power connection and foundation fixing, greatly shortening the installation cycle and preparation time.
Modern electric steam boilers are generally equipped with highly intelligent control and safety systems. Utilizing advanced microelectronics and sensor technology, they achieve precise control over the entire operation process. The control system boasts comprehensive automation functions, automatically completing a series of operations such as water intake, heating, and steam delivery based on preset steam parameters and real-time steam demand. This eliminates the need for frequent operator intervention, effectively reducing labor costs and the risk of operational errors.
In terms of pressure control, the system uses high-precision pressure sensors to collect real-time pressure data from the steam chamber. When the pressure exceeds the preset upper limit, it automatically cuts off the power to some heating elements and activates the pressure relief device; when the pressure falls below the lower limit, it promptly increases the heating power to ensure the steam pressure remains stable within the process requirements.
Water level protection is a crucial component of the safety system. In addition to basic water level monitoring and automatic water replenishment, a low-water-level interlock protection device is installed. Once the water level is detected to be below the safety threshold, an emergency shutdown procedure is immediately triggered to prevent damage to the heating elements due to dry burning, thus avoiding safety accidents.
With the development of Industrial Internet of Things (IIoT) technology, remote monitoring has become a mainstream feature. Operators can view boiler operating parameters such as temperature, pressure, water level, and heating status in real time via computers, mobile phones, and other terminal devices. They can also remotely perform operations such as start-up, shutdown, and parameter adjustments, achieving unattended management of the equipment and further improving the convenience and safety of operation management.
The long-term stable operation and performance maintenance of electric steam boilers rely on a scientific and reasonable maintenance strategy, among which water quality management is a core element. Impurities such as calcium and magnesium ions in the water easily form scale during heating, adhering to the surface of the heating elements and the inner wall of the steam chamber. This not only reduces heat transfer efficiency and increases energy consumption but can also damage the heating elements due to uneven heating, shortening the equipment's lifespan.
Therefore, it is essential to equip the boiler with professional water treatment equipment to soften the water entering the boiler, reducing its hardness. Regular cleaning of the water tank and steam chamber is also necessary to remove existing scale and impurities. As the core consumable component, the condition of the heating elements directly affects the boiler's operating efficiency. Regular inspections are required to check for surface scaling, corrosion, deformation, etc. Heating elements with degraded performance or damage should be replaced promptly to ensure the overall efficiency of the heating system.
Routine system maintenance is equally indispensable, including parameter calibration of the control system, functional testing of safety protection devices, and inspection and tightening of electrical lines and terminals. Furthermore, a comprehensive maintenance record should be established, documenting the time, content, problems found, and solutions for each maintenance session. Data analysis can help understand the equipment's operating patterns.
Anticipating potential faults in advance enables preventative maintenance, maximizing equipment lifespan and ensuring long-term stable operation.
Electric steam boilers, with their clean, efficient, and highly controllable characteristics, are widely used in numerous industrial and commercial sectors, becoming the preferred steam supply equipment for various industries. In the food processing industry, the quality and stability of steam directly affect product quality and safety. The clean steam generated by electric steam boilers can be used for cooking materials, ensuring food remains uncontaminated during heating. Simultaneously, in the sterilization process, stable high-temperature steam effectively kills microorganisms in food, extending product shelf life.
In the medical and laboratory fields, the purity and stability of steam are extremely important. The contaminant-free steam generated by electric steam boilers can be used for the sterilization of medical devices, avoiding the risk of cross-contamination. Furthermore, in various laboratory experiments, precisely controllable steam provides reliable assurance for humidification control and maintaining reaction conditions.
In the textile industry, processes such as dyeing, setting, and drying all rely heavily on steam. Electric steam boilers provide stable temperature and pressure steam, ensuring uniform dye adhesion and improving dyeing results in the dyeing process; helping fabrics maintain a stable shape in the setting process; and achieving rapid drying and increasing production efficiency in the drying process. The pharmaceutical industry has stringent requirements for the cleanliness of the production environment and process media. The clean steam generated by electric steam boilers can be directly used in the heating and sterilization processes of pharmaceutical production, preventing contaminants in the steam from affecting drug quality.
In hotels, hot springs, and commercial venues, electric steam boilers also play an important role, providing steam support for guest room heating and catering kitchens. Hot springs utilize the steam generated to create a comfortable bathing environment, and their low noise and small size characteristics also make them well-suited to the operational needs of commercial venues.
The environmental advantages of electric steam boilers are present throughout their entire operating cycle. The pure electric heating operation fundamentally eliminates the environmental problems caused by combustion emissions. There is no waste gas or residue generated, and no pollutants such as sulfides and nitrogen oxides pollute the atmosphere, making it an ideal choice for achieving low-carbon production.
Meanwhile, its high thermal efficiency means that less energy is consumed to produce the same amount of steam, effectively reducing overall energy consumption and dependence on energy resources, aligning with the global trend of energy conservation. From an economic perspective, electric steam boilers also offer significant advantages. Their relatively simple structure reduces complex components such as combustion and flue gas treatment systems compared to traditional boilers, lowering manufacturing costs and simplifying subsequent maintenance.
Low maintenance costs are a prominent economic feature. With fewer wear parts, routine maintenance focuses on water quality management and regular inspections, eliminating the need for extensive manpower and resources for complex repairs and maintenance, resulting in substantial savings in maintenance costs over the long term.
Furthermore, with the continuous improvement of global environmental regulations, companies using electric steam boilers can effectively avoid fines and rectification costs due to excessive pollutant emissions. In some regions, they can also enjoy environmental policy support and preferential policies, further enhancing their economic cost-effectiveness and providing strong support for companies to achieve a win-win situation of economic and environmental benefits.
Based on differences in structure and heating method, electric steam boilers can be mainly divided into three categories: heated tube boilers, electrode boilers, and modular and compact electric steam equipment. Each type of equipment has unique structural characteristics and applicable scenarios.
Heated tube boilers are currently the most widely used type. Their core heating component is a metal heating tube, which is directly immersed in water. Heat is transferred to the water through the tube wall, achieving water heating and vaporization. The advantages of heated tube boilers are stable heating efficiency, relatively simple replacement and maintenance of heating tubes, and the ability to flexibly configure the number and power of heating tubes according to steam demand, making them suitable for various industrial and commercial scenarios with small to medium steam requirements.
The working principle of electrode boilers differs fundamentally from that of heated tube boilers. They do not rely on the heat conduction of heating elements, but rather utilize the conductivity of water. Electrical energy is directly applied to the water through electrodes, causing the water itself to generate heat and achieve vaporization. This heating method allows for more direct and efficient energy conversion, and the equipment is relatively small in size. However, it has extremely high requirements for water quality, necessitating strict control of water conductivity. It is typically suitable for large-scale industrial applications with high demands for steam quality and heating efficiency.
Modular and compact electric steam equipment is designed for scenarios with limited space and flexible steam demand. Its modular structure allows for the combination of multiple small boiler units to flexibly adjust steam output according to actual needs. This type of equipment has a small footprint, is easy to install, and starts up quickly, making it ideal for small and medium-sized enterprises, commercial establishments, and other applications with fluctuating steam demand.
Modern electric steam boilers have a comprehensive system of safety, automation, and monitoring functions, providing all-round protection for stable equipment operation. Automatic start-up and shutdown functions are the foundation of automated control. The equipment can automatically complete start-up and shutdown operations based on preset parameters such as operating time and steam demand thresholds. For example, it can preheat before production begins and automatically shut down after production ends, avoiding energy waste.
Temperature and pressure monitoring are core functions. Multiple high-precision sensors distributed throughout the steam chamber and heating zone collect temperature and pressure data in real time and transmit the data to the control system. The system adjusts in real time according to preset parameter ranges to ensure all indicators remain stable within safe limits.
Multiple safety interlocks are crucial for equipment safety. In addition to low water level interlock protection, over-temperature interlock, over-pressure interlock, and leakage protection are also included. When any parameter exceeds the safe range, the relevant protection devices will immediately trigger, taking emergency measures such as cutting off power and opening pressure relief valves to prevent accidents.
Intelligent diagnostics and control interface functions further enhance the ease of operation and maintenance. The intelligent diagnostic system can monitor the operating status of various components in real time. When potential faults such as aging heating elements or poor wiring connections are detected, alarm signals will be issued promptly, indicating the location and cause of the fault, facilitating quick handling by operators. The control interface supports data interaction between the equipment and the plant's central control system, enabling centralized management and coordinated operation of multiple boilers and improving the overall intelligence level of the steam supply system.
The quality of installation and operation of an electric steam boiler directly affects its efficiency and service life. Key factors such as model selection, power supply, installation space, and water treatment require close attention. The model selection process should be based on a comprehensive consideration of actual steam demand, steam parameter requirements, and site conditions. First, the maximum steam consumption during production must be accurately calculated to ensure that the selected boiler's rated evaporation capacity can meet peak demand. Simultaneously, the steam pressure and temperature rating should be determined according to process requirements.
Power supply is fundamental to equipment operation. A transformer and power supply line of appropriate capacity should be configured according to the boiler's rated power to ensure a stable and sufficient power supply. A reasonable wiring scheme should be designed, with proper insulation protection and load distribution to avoid power supply issues affecting equipment operation.
Regarding installation space, sufficient installation space should be reserved according to the boiler's size. The installation site should be well-ventilated, dry, and clean to facilitate heat dissipation and daily maintenance. Furthermore, space for steam pipes and water supply/drainage pipes must be considered, ensuring reasonable connections and standardized layout.
Water treatment is a critical aspect of the operation process. It is essential to equip the system with compliant water treatment equipment to rigorously treat the incoming water, reducing its hardness and impurity content. Regular water quality monitoring is crucial, and the water treatment plan should be adjusted based on the results to prevent scale formation and equipment damage. During operation, comprehensive operating procedures should be established, and operators should receive professional training to ensure familiarity with the equipment's operation and safety precautions, guaranteeing its standardized operation.
Electric steam boilers, with their outstanding advantages of cleanliness, high efficiency, and simple maintenance, have become an ideal solution for modern industrial and commercial steam supply. Their highly efficient conversion of electrical energy to heat effectively reduces energy consumption and operating costs; their zero-emission environmental advantage perfectly aligns with the global trend of low-carbon development and easily meets various environmental regulations.
With the continuous optimization of energy structures and the ongoing upgrades in intelligent technologies, the performance of electric steam boilers will be further improved, and their application scope will continue to expand. For enterprises pursuing sustainable development and operational efficiency, adopting advanced electric heating steam equipment can not only effectively control production costs but also improve the stability and environmental protection level of the production process, injecting strong momentum into the long-term development of the enterprise.
