A gas-fired steam boiler is a thermal energy device that uses natural gas or other combustible gases as fuel. Through combustion, it generates heat energy to heat water to boiling and convert it into steam. In a steam system, it plays a core role in heat energy supply and is a crucial link connecting energy input and steam output. In the current global industrial development context focusing on energy conservation and environmental protection, gas-fired steam boilers, with their high energy conversion efficiency and low pollutant emissions, have become important equipment for promoting the green transformation of the industrial sector. In industrial production processes, many processes, such as material heating and chemical reaction driving, rely on a stable steam supply; in heating systems, it can provide a continuous heating source for large building complexes or industrial parks; simultaneously, as traditional high-pollution energy sources are gradually replaced, gas-fired steam boilers occupy an irreplaceable position in the process of energy structure optimization and transformation, laying the foundation for a further in-depth discussion of its technical characteristics and application value.

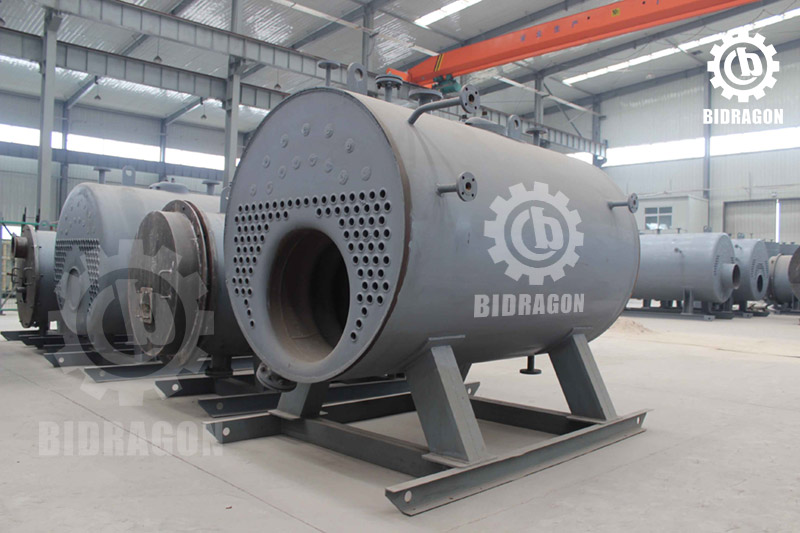

A gas-fired steam boiler refers to a special device that utilizes the heat energy released from the combustion of gas, which is transferred to the water in the boiler drum through a heating surface, causing the water to reach a certain temperature and pressure to generate steam. Its structure is intricately composed, with each part working in concert to ensure the stable operation of the boiler. The combustion system is the starting point for energy conversion in the boiler. Its main function is to mix fuel gas and air in a precise ratio, and then achieve complete combustion within a specific space, releasing high-temperature heat energy to provide the energy source for subsequent heat transfer processes. The boiler body, as the core component for steam generation, contains key components such as the furnace, water pipes, and steam drum. The furnace provides a closed space for fuel gas combustion, while the water pipes serve as the main heat-receiving surfaces, responsible for efficiently transferring the heat energy generated by combustion to the flowing water. The steam drum is used to store and separate steam and water, ensuring the quality of the output steam. The control and safety system plays a dual role in intelligent regulation and safety assurance during boiler operation. It can monitor key parameters such as pressure and temperature inside the boiler in real time, and automatically adjust the fuel gas supply, air ratio, and combustion status according to set values. At the same time, it activates the protection mechanism when parameters are abnormal, achieving safe and efficient operation of the boiler. The flue gas and waste heat recovery system is responsible for the safe discharge of flue gas generated after combustion, while simultaneously recovering the waste heat carried in the flue gas through specific heat exchange devices. This waste heat can then be reused for heating feedwater or other process steps, further improving the overall energy efficiency of the boiler.
The working process of a gas-fired steam boiler is a continuous and efficient energy conversion and transfer process. First, the gas is delivered to the burner under pressure. The burner mixes the gas with precisely metered air and injects it into the furnace for ignition, forming a stable combustion flame. During this process, the chemical energy of the gas is converted into heat energy, producing high-temperature flue gas. Next, the high-temperature flue gas flows within the furnace and flue, undergoing thorough heat exchange with the heating surfaces in the boiler body. The heat energy of the flue gas is transferred to the water flowing in the water pipes through the heating surfaces, gradually increasing the water temperature. As heat energy is continuously input, water absorbs heat within the boiler drum. When the temperature reaches the saturation temperature at the corresponding pressure, vaporization begins, gradually forming saturated steam. If the process requires steam with higher parameters, the saturated steam will further enter the superheater, continuing to absorb heat and rising above the saturation temperature, becoming superheated steam. Finally, the generated saturated or superheated steam is transported to various steam-using equipment through steam pipelines. In these devices, the steam releases heat energy to achieve functions such as material heating, driving process reactions, or providing power, completing the final utilization of energy. The steam after releasing heat energy condenses into water, and some of the condensate, after treatment, can be returned to the boiler feedwater system, realizing the recycling of water resources. Throughout the entire operation, the boiler's control and safety system continuously monitors various operating parameters in real time, ensuring the stability and safety of combustion, heat exchange, and steam delivery, demonstrating the significant characteristics of efficient energy conversion and automatic control.
The efficiency and performance of gas-fired steam boilers are core indicators for evaluating their technological level and application value. They directly relate to energy consumption costs, environmental benefits, and production stability in industrial production. Therefore, in-depth analysis and discussion from multiple key dimensions are necessary.
Boiler thermal efficiency refers to the ratio of the effective heat output of the boiler to the total heat input of the fuel. Its level is affected by a combination of factors. Complete combustion is the primary factor. If the gas and air are not mixed evenly or the amount of air during combustion is insufficient, the gas will not burn completely, and some of the fuel's energy will be emitted with the flue gas as unburned products, resulting in energy loss. Conversely, if there is too much air, it will lower the furnace temperature and increase flue gas heat loss, also affecting thermal efficiency. Controlling the air-to-gas ratio is crucial. Only by maintaining the optimal air-fuel ratio can complete combustion of the gas be ensured while minimizing additional energy loss. The insulation of a boiler also significantly affects its thermal efficiency. Damage or poor insulation of the boiler body and flue insulation layer can lead to substantial heat loss through the walls, reducing the boiler's effective heat output. The rationality of the heating surface design directly determines the heat exchange efficiency. The size, arrangement, material selection, and surface cleanliness of the heating surface all affect the heat transfer between flue gas and water. Insufficient heating surface area results in inadequate heat exchange, causing the flue gas to carry a large amount of waste heat during emission. Scale or ash buildup on the heating surface increases thermal resistance, hindering heat transfer and reducing thermal efficiency. Therefore, optimizing combustion control technology to ensure the optimal air-fuel ratio and combustion completeness, while improving heating surface design, increasing the effective heat exchange area, and strengthening the cleaning and maintenance of the heating surface, can significantly improve the boiler's thermal efficiency.
Condensation technology is one of the important advanced technologies for improving the thermal efficiency of gas-fired steam boilers. Its core principle is the recovery and utilization of the latent heat of water vapor in the flue gas. During gas combustion, a large amount of water vapor is generated, carrying a significant amount of latent heat. In traditional boilers, due to the high flue gas temperature, this water vapor cannot condense, and the latent heat is directly discharged with the flue gas, resulting in energy waste. Boilers using condensing technology are equipped with condensing heat exchangers, typically located at the end of the flue. When high-temperature flue gas flows through the condensing heat exchanger, the low-temperature feedwater or other cooling medium inside the exchanger exchanges heat with the flue gas, gradually lowering the flue gas temperature below the dew point. At this point, the water vapor in the flue gas condenses into water, releasing a large amount of latent heat during condensation. This released latent heat is absorbed by the medium in the condensing heat exchanger and used to heat the feedwater or directly provide heat energy for other processes, thus recovering and utilizing this previously wasted latent heat. Through this energy recovery mechanism, the thermal efficiency of gas-fired steam boilers can be significantly improved, reaching up to 98%. Meanwhile, condensation technology also plays a crucial role in reducing flue gas temperature. Lower flue gas temperatures not only reduce heat loss but also lower the high-temperature resistance requirements of flue materials, extending their service life. Furthermore, due to improved heat recovery efficiency, the amount of gas required to produce the same amount of steam is significantly reduced, effectively lowering fuel costs and carbon emissions, bringing significant economic and environmental benefits to industrial enterprises.
To ensure the long-term efficient and stable operation of gas-fired steam boilers and extend their service life, it is essential to develop a scientific and reasonable maintenance strategy. Regular inspections are the foundation of maintenance work. Personnel need to conduct comprehensive inspections of all systems and components of the boiler according to prescribed cycles. This includes checking for blockages, wear, or leaks in the burners of the combustion system; corrosion, deformation, or cracks in the boiler body's furnace, water pipes, and steam drum; proper functioning of sensors, controllers, and safety valves in the control and safety system; and ensuring the flue gas ducts of the exhaust and waste heat recovery system are unobstructed and that the condensing heat exchanger is free of scale. Regular inspections allow for the timely detection of potential faults and the implementation of corresponding repair measures to prevent the escalation of problems. Cleaning heat exchange surfaces is a crucial part of maintenance. During boiler operation, scale or ash easily accumulates on the heating surfaces. This scale increases thermal resistance, reduces heat exchange efficiency, and leads to a decrease in boiler thermal efficiency. It can also cause localized overheating of the heating surfaces, accelerating corrosion and damage. Therefore, it is necessary to regularly clean heating surfaces such as water pipes and condensing heat exchangers. Depending on the type and extent of the scale, appropriate cleaning methods such as chemical cleaning and high-pressure water jet cleaning should be used to remove the scale from the heating surface and restore good heat exchange performance. Controlling water quality is also an important measure to ensure the long-term performance of the boiler. If the boiler feedwater contains too many impurities, salts, or oxygen, scale will form on the heating surfaces and inside the pipes, corroding metal surfaces and affecting the safe operation and service life of the boiler. Therefore, strict treatment of boiler feedwater is required, such as using ion exchange to remove salts and adding deoxygenating agents to remove oxygen. Regular monitoring of boiler water quality indicators is also necessary to ensure that the water quality meets the boiler's operating requirements. By implementing the above maintenance strategies, boiler malfunctions can be effectively prevented, downtime reduced, and boiler lifespan extended, while ensuring the boiler maintains high thermal efficiency and provides long-term, stable heat support for industrial production.
Gas-fired steam boilers, with their advantages of high efficiency, environmental friendliness, and stable operation, are widely used in numerous industrial and commercial sectors, providing crucial heat support for the production and operation of various industries.
In the food and beverage, chemical and pharmaceutical, and textile printing and dyeing industries, gas-fired steam boilers play an indispensable role. In the food and beverage industry, steam is commonly used in cooking, sterilization, and cleaning processes to ensure food quality, product safety, and equipment cleanliness. In the chemical and pharmaceutical industry, it provides a stable heat source for reaction vessels and distillation units, ensuring production quality and efficiency. In the textile printing and dyeing industry, dyeing, drying, and finishing processes rely on steam to meet strict temperature and humidity requirements, ensuring the quality of fabric processing.
In commercial establishments such as hospitals and hotels, gas-fired steam boilers are equally crucial. They heat circulating water through heat exchangers, providing stable centralized heating and sufficient domestic hot water to these locations, ensuring normal operation and a good user experience.
Gas-fired steam boilers also have important applications in power generation and energy systems. They not only supply steam to auxiliary equipment in large power plants, ensuring their normal operation, but also, in small and medium-sized steam turbine systems, use steam to drive turbines and generators to provide independent electricity to industrial enterprises or remote areas, meeting specific energy needs.
Gas-fired steam boilers exhibit significant advantages in both environmental protection and economics, making them one of the preferred thermal energy equipment choices in the industrial sector.
In terms of environmental protection, gas-fired steam boilers primarily use clean energy sources such as natural gas. These fuels produce lower nitrogen oxide emissions during combustion, effectively reducing atmospheric pollution and lowering the risk of environmental problems such as acid rain and photochemical smog compared to traditional high-polluting fuels. Simultaneously, the combustion of gas is complete, with combustion products mainly consisting of carbon dioxide and water, producing almost no smoke or ash. This avoids the impact of smoke emissions on air quality and the environmental pressure caused by ash disposal, reducing solid waste generation and meeting global requirements for environmental protection and sustainable development.
From an economic perspective, gas-fired steam boilers offer high thermal efficiency, maximizing the conversion of fuel energy into usable heat and minimizing energy waste. This means that less gas is needed to produce the same amount of steam, directly reducing fuel procurement costs. Furthermore, since virtually no smoke or ash is generated during combustion, companies do not need to invest heavily in purchasing and operating smoke treatment equipment, or in transporting and disposing of ash, reducing investment and operating costs for environmental protection facilities. Simultaneously, gas-fired steam boilers have a relatively simple structure, stable operation, require minimal maintenance, have low maintenance costs, and start up quickly, rapidly responding to load changes and minimizing production delays caused by equipment failure or slow start-up.
In summary, gas-fired steam boilers not only have relatively low operating costs but also comply with internationally recognized energy conservation and sustainable development standards, providing strong support for companies to achieve green production while reducing production costs.
Energy Efficiency and Start-up Response Speed
Comparing gas-fired steam boilers with other common types of boilers such as coal-fired boilers, oil-fired boilers, and electric boilers clearly highlights their unique advantages. In terms of energy efficiency, gas-fired steam boilers typically have higher thermal efficiency due to complete combustion and advanced waste heat recovery systems, effectively utilizing fuel energy. Coal-fired boilers experience significant heat losses during combustion, such as flue gas heat loss and ash heat loss, resulting in relatively lower thermal efficiency. Oil-fired boilers have thermal efficiency between gas-fired and coal-fired boilers, but are significantly affected by fuel quality and combustion technology. While electric boilers have a relatively direct energy conversion process, there is some energy loss during electricity production, resulting in relatively lower overall efficiency across the entire energy utilization chain. In terms of start-up response speed, gas-fired steam boilers require no complex fuel preparation or preheating process during startup, quickly reaching rated operating status and adapting to rapid load changes. Coal-fired boilers require a series of preparatory work such as fuel storage and furnace preheating before startup, resulting in a longer startup time. Oil-fired boilers start up slightly faster than coal-fired boilers, but still slower than gas-fired boilers. Electric boilers start up relatively quickly, but their overall response capability is still inferior to gas-fired boilers due to limitations in the power and heating speed of electric heating elements.
Operating Costs and Maintenance Convenience
In terms of operating costs, although the fuel cost of gas-fired steam boilers is affected by fluctuations in natural gas prices, the fuel consumption cost per unit of steam is relatively reasonable due to their high thermal efficiency. Coal-fired boilers have lower fuel procurement costs, but additional costs such as ash and slag treatment and environmental protection equipment operation must be considered, resulting in higher overall operating costs. Oil-fired boilers typically have higher fuel prices than natural gas and slightly lower thermal efficiency, leading to higher unit steam costs. Electric boilers have the highest electricity costs, far exceeding those of gas-fired and coal-fired boilers. In terms of ease of maintenance, gas-fired steam boilers have a relatively simple structure, and their combustion and exhaust systems are less prone to accumulating large amounts of dirt and impurities, resulting in longer maintenance cycles and less maintenance workload. Coal-fired boilers are prone to ash and slag buildup in the furnace and flue, requiring frequent cleaning, and their combustion equipment is easily worn, leading to high maintenance frequency and workload. Oil-fired boilers are prone to burner blockage due to fuel impurities, requiring regular cleaning and maintenance; their maintenance difficulty and workload fall between gas-fired and coal-fired boilers. Electric boiler maintenance mainly focuses on the inspection and replacement of electric heating elements, making maintenance relatively simple, but the lifespan of electric heating elements is limited, and replacement costs are high.
Environmental Impact and Safety Performance
In terms of environmental impact, gas-fired steam boilers emit fewer pollutants and are environmentally friendly. Coal-fired boilers emit large amounts of soot, sulfur dioxide, nitrogen oxides, and other pollutants, causing serious environmental impact. Oil-fired boilers emit fewer and more diverse pollutants than coal-fired boilers, but still more than gas-fired boilers. Electric boilers themselves do not emit pollutants, but the power generation process may generate pollution; the specific environmental impact depends on the power source. In terms of safety performance, gas-fired steam boilers have a comprehensive safety control system that effectively prevents safety hazards such as gas leaks, overpressure, and overheating. However, the risk of explosion caused by gas leaks must be noted. Coal-fired boilers pose safety risks such as furnace explosions and boiler water shortages, and there are also safety hazards such as burns during ash and slag handling. Oil-fired boilers also pose safety risks such as oil leaks, fires, and explosions. Electric heating boilers mainly pose safety risks such as electric leakage and overheating, requiring strengthened electrical safety protection.
Modern gas-fired steam boilers rely on advanced technology to build a comprehensive safety, automation, and monitoring system. Automatic ignition and flameout control ensure safety, while the automation system adjusts operating parameters according to load, improving efficiency and stability. Real-time monitoring systems ensure safety through pressure, temperature, and water level sensors, and multiple safety interlocks and alarm mechanisms prevent the escalation of faults. Remote diagnostics and centralized management platforms facilitate operation and maintenance, enabling remote analysis and unified scheduling.
Modern gas-fired steam boilers integrate advanced technologies to build a comprehensive safety, automation, and monitoring system. In terms of safety features, the automatic ignition system completes the ignition process only when there is no gas leakage and good ventilation. The flameout control system immediately cuts off the gas supply and purges the system upon encountering an anomaly, eliminating the risk of explosion. Automated operation is implemented throughout the entire process of gas, air supply, and steam parameter regulation, dynamically adjusting valve opening and airflow based on load to reduce human intervention and improve energy efficiency. At the monitoring level, the pressure, temperature, and water level monitoring system collects key data in real time through sensors. Exceeding thresholds triggers alarms and activates protective measures to prevent overpressure, abnormal temperature, and water level imbalance. Multiple safety interlocking mechanisms link various systems; an anomaly triggers linked protection, and the alarm mechanism provides feedback on anomalies through multiple methods. The remote diagnostic system provides remote technical support via the network, shortening fault handling time. The centralized management platform integrates data from multiple boilers, facilitating unified scheduling and optimized operation, and reducing management costs.

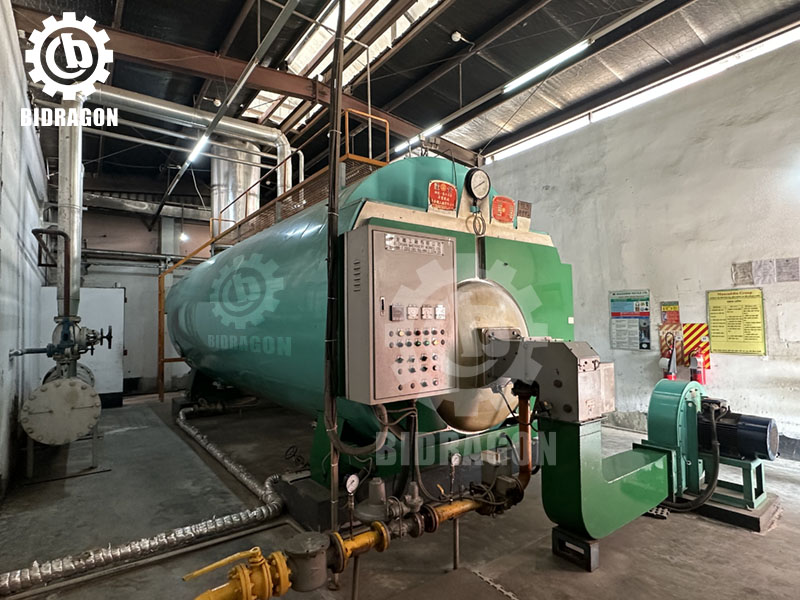

In the installation and operation of gas-fired steam boilers, controlling key points is fundamental to safe and efficient operation. When selecting a boiler, it is necessary to consider actual production or commercial needs, comprehensively factoring in steam consumption, parameters, operating time, and development plans, to accurately calculate the load and match the boiler capacity. Otherwise, excessive or insufficient capacity will affect efficiency and production. Ventilation, flue, and piping design are crucial for operational safety and efficiency. Good ventilation ensures air supply and flue gas exhaust. Flue layout follows the principles of shortest path and lowest resistance, and proper insulation is essential. Piping design conforms to standards, ensuring safe medium transport and minimizing pressure loss. Insulation, drainage, and water supply systems are equally important. Insulation reduces heat loss, while drain valves and steam traps maintain heat exchange and equipment safety. The water supply system provides qualified water through appropriate pumps and water treatment equipment. After installation, a comprehensive commissioning of the combustion, control, and safety systems is required. This includes adjusting the gas-air mixing ratio, ensuring accurate control system adjustments, and testing the operation of safety equipment. Simultaneously, safety verification is conducted, including water pressure and airtightness tests, and electrical instrument checks. Only after all tests are passed can the boiler be put into operation.
Gas-fired steam boilers, as key thermal energy equipment in industrial production and commercial operations, occupy an important position in the modern energy system. Its high efficiency is reflected in advanced combustion technology, a condensing waste heat recovery system, and optimized heating surface design, which can maximize the conversion of gas energy into effective heat energy, achieving a thermal efficiency of up to 98%, significantly reducing energy consumption and costs. Its environmental friendliness stems from the use of clean energy sources such as natural gas, with minimal emissions of nitrogen oxides and soot during combustion, meeting global sustainable development and environmental protection requirements and helping enterprises achieve green production transformation.
