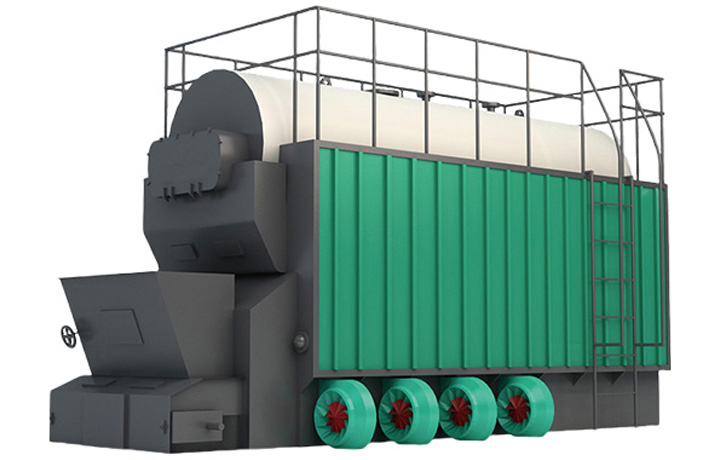

DZL Chain Grate Biomass Steam Boiler

Model: DZL

Rated Evaporation: 1-10T/H

Rated Steam Pressure: 1.0/1.25/1.5/2.5 Mpa

Design Fuel: biomass pellet, wood pellet, coal, rice husk

Send Email

Chat Now

DZL Series Chain Grate Biomass Steam Boiler

The DZL biomass steam boiler is a single-drum chain grate boiler designed for efficient combustion of biomass fuels like wood chips, rice husks, and bagasse. It features a combined water-tube and fire-tube structure, with high thermal efficiency and stable performance. Equipped with an economizer, induced draft fan, and spiral slag remover, it supports automated and reliable operation. Ash and slag can be reused as organic fertilizer, making it both eco-friendly and energy-saving.

The boiler supports multiple emission control systems (e.g., bag filter, desulfurization), meeting environmental standards while reducing operating costs compared to coal-fired boilers.

Get In Touch With Us

Technical Parameter

Model	DZL1	DZL2	DZL4	DZL6 SZL6	SZL10	SZL15	SZL20
Rated Steam Capacity(t/h)	1	2	4	6	10	15	20
Rated Working Pressure(Map)	1.0	1.0/1.25/1.6	1.25/1.6	1.25/1.6/2.5	1.25/1.6/2.5	1.25/1.6/2.5	1.25/1.6/2.5
Rated Steam Temp.(℃)	184	184/194/204	194/204	194/204/226	194/204/226	194/204/226	194/204/226
Feed-water Temp.(℃)	20	20	20	20	20/104	20/104	20/104
Boiler proper heating area(m²)	33.5	63.5	115	170	252	334	510.6
Effective Boiler Area(m²)	2.1	3.2	5.8	9.2	13.2	18.75	24.6
Water Volume(m³)	3.6	6.5	7.2	8.4	10.5	14	22
Design Efficiency (%)	>87	>87	>87	>87	>87	>87	>87
Design of Fuel	Coal, Wood Pellet
Fuel Consumption (kg/h)	175	350	700	1048	1748	2620	3496
Transportation size(LWH)(m)	5.51.82.9	5.82.63.4	62.93.5	7.333.043.56	9.13.43.54	11.33.463.52	12.84.053.75
Weight(t)	13	17	28	25	31	42	50

Available Fuels

Item	Low Heat Value
II Class Bituminous	4500-5000 kcal/kg
Pellet	3000-4200
Wood Chip(oak)	3830 kcal/kg
Rick Husk	2600-3600 kcal/kg
Pale Shell	2997 kcal/kg
Coconut Shell	3885 kcal/kg
Sawdust	3120 kcal/kg
Bagasse	1665 kcal/kg
Corn Cobs	4241 kcal/kg
