SZL Water Tube Biomass Fired Boiler

SZL Series Water Tube Biomass Fired Boiler

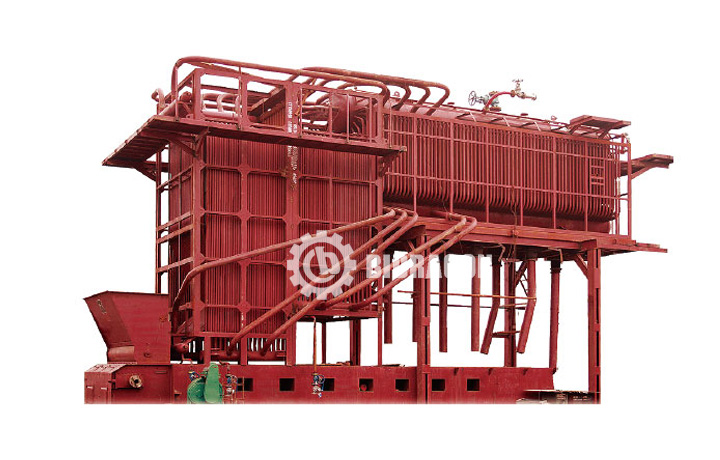

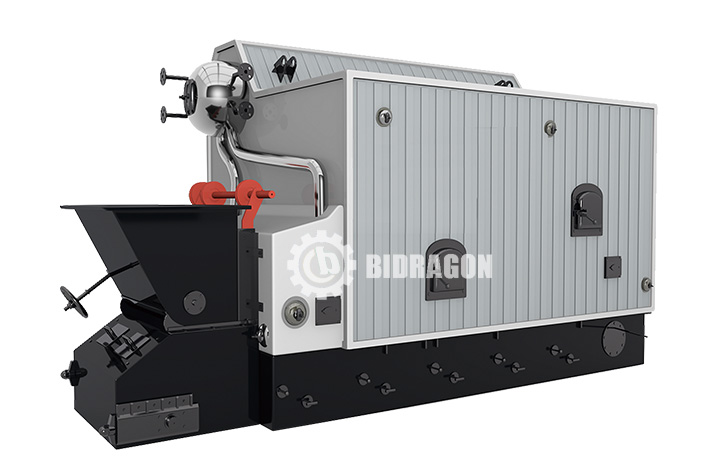

SZL series biomass steam boiler is a double-drum, horizontal water tube boiler with chain grate combustion. It adopts modular assembly—small capacity models are quick-assembly type, while larger ones are split into upper heating and lower combustion sections. The boiler features water walls, steam-water separator, blowdown device, and an economizer for improved efficiency. It is suitable for burning various biomass fuels like wood chips, rice husk, bagasse, and coconut shell, making it ideal for industries such as textiles, food, and chemicals.Compared with coal-fired boilers, biomass fuels have lower cost and lower operating cost.

Get In Touch With Us

Technical Parameter

Model	Rated Evaporation Capacity (t/h)	Rated Pressure	Steam Temperature (℃)	Supply / Return Water Temperature(℃)	Overall Dimension of biggest part for transfortation
Model	Rated Evaporation Capacity (t/h)	(MPa)	Steam Temperature (℃)	Supply / Return Water Temperature(℃)	LWH（mm）
SZL2-0.8/1.0/1.25/1.6/2.5-T	2	0.8/1.0/1.25/1.6/2.5	175/184/194/204/226	20/70	5500×2350×3650
SZL4-1.0/1.25/1.6/2.5-T	4	1.0/1.25/1.6/2.5	184/194/204/226	20/70	7730×2360×3520
SZL6-1.0/1.25/1.6/2.6-T	6	1.0/1.25/1.6/2.5	184/194/204/226	20/70	up 6150×2840×3540	down 7275×2852×2580
SZL8-1.0/1.25/1.6/2.7-T	8	1.0/1.25/1.6/2.5	184/194/204/226	20/70	up 6971×2933×3540	down 8056×2945×2580
SZL10-1.0/1.25/1.6/2.8-T	10	1.0/1.25/1.6/2.5	184/194/204/226	20/70	up 7855×3240×3540	down 9025×3200×2580
SZL15-1.0/1.25/1.6/2.9-T	15	1.0/1.25/1.6/2.5	184/194/204/226	20/70	Up 10000×3240×3540	down 12000×3200×3080
SZL20-1.0/1.25/1.6/2.10-T	20	1.0/1.25/1.6/2.5	184/194/204/226	20/70	up 11000×3240×3540	down 14000×3200×3080
Note: Parameter is for reference only, if any changes should follow the actural drawing

Available Fuels

Item	Low Heat Value
II Class Bituminous	4500-5000 kcal/kg
Pellet	3000-4200
Wood Chip(oak)	3830 kcal/kg
Rick Husk	2600-3600 kcal/kg
Pale Shell	2997 kcal/kg
Coconut Shell	3885 kcal/kg
Sawdust	3120 kcal/kg
Bagasse	1665 kcal/kg
Corn Cobs	4241 kcal/kg

Bagasse

Cassawa Waste

Coconut Husk

Pale Fiber

Corn Cobs

Pale Bunch

Pellet

Rick Husk

Sawdust

Video Playback Showcase

Water Tube Biomass Fired Boiler

Product Advantages

Easy to Install

Boiler is composed of upper body and chain grate 2 big parts, which only need to gather up and bricking the lower furnace, easy installation, lower cost and short time.

Both Sides Air Inlets

The boiler adopts double-side air inlet & independent air chamber structure, which can flexibly adjust the air volume and wind pressure of each air chamber to ensure the combustion performance.

Remote Monitoring

Advanced control system--remote monitoring, if there is any abnormality during the operation of the boiler, providing the first time guidance to reduce the failure rate and loss.

Support a Variety of Biomass

Larger and higher furnace ensure the fully combustion, many kinds of biomass can be used on this boiler, strong applicability
