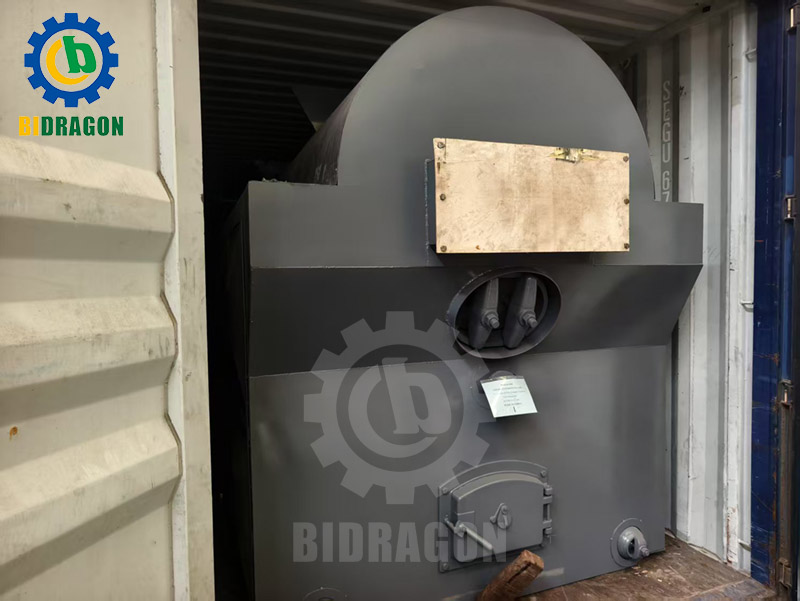

Hot water steam boilers use fuel heat to heat water into hot water or steam. They are indispensable in industrial production and central heating. In industry, they provide heat source power for the chemical, food, and textile industries; in heating systems, they supply hot water for residential and public facilities.
The core of a hot water steam boiler's operation is based on the principles of thermodynamics: heat transfer and energy conversion. The high-temperature flue gases generated by fuel combustion in the furnace transfer heat to the boiler's heating surfaces through radiation and convection, thereby heating the water within. Hot water boilers heat the water to a set temperature and then distribute it through a circulating pump for heat supply. Steam boilers absorb heat and vaporize the water, further generating superheated steam for distribution through pipelines. The essential difference between the two lies in the intensity of heat supply and system pressure control: hot water boilers rely on water temperature differences to transfer heat, resulting in lower pressures; steam boilers require pressure control to achieve boiling and vaporization of the water, involving phase changes. Heat transfer efficiency depends on the heating surface area, temperature differential, and medium flow, which can be improved through optimized layout and enhanced disturbance. Pressure control is monitored by sensors, adjusting the fuel supply when pressure exceeds the limit, and a safety valve automatically releases pressure when the pressure reaches the safety threshold.
A hot water steam boiler's core process is "fuel combustion - heat transfer - medium delivery - safety control," with all components operating in tandem. The furnace, serving as the fuel combustion chamber, is constructed of high-temperature-resistant materials to ensure efficient heat transfer. The boiler shell, depending on the boiler type, performs heat exchange or steam-water distribution functions. The piping system transports softened water, produced steam/hot water, and exhaust gases, and some are also equipped with waste heat recovery devices. The burner utilizes different structures and combustion methods depending on the fuel type, which directly affects combustion efficiency and environmental performance. A control system consisting of a PLC and various sensors monitors parameters such as water temperature, pressure, and water level in real time, enabling automated operation. The safety valve automatically releases pressure in the event of overpressure to ensure safety. Measuring instruments such as pressure gauges, thermometers, and water level gauges provide data support for operational monitoring, ensuring stable and controllable boiler operation. 4. Fuel Types Used in Hot Water Steam Boilers
Hot water steam boilers use a variety of fuels with varying characteristics. Natural gas is clean, efficient, and easily transported, making it suitable for areas with high environmental protection requirements and stable energy sources. Fuel oil offers high energy density and strong heating capacity, but also requires high storage and transportation requirements, high emissions, and high costs. Coal, while low-cost and abundant, is inefficient and highly polluting, requiring complex environmental protection equipment and extensive storage space. Biomass fuel is renewable, relatively environmentally friendly, and low-cost, but it has a low energy density, is highly susceptible to moisture, and requires moisture-proof storage. Electric-powered, electrically heated boilers offer zero emissions, are easy to operate, and require a small footprint, making them suitable for environments with extremely high environmental requirements or low electricity prices. However, they are costly and require high grid capacity. When choosing a fuel, consider the three key factors: cost, efficiency, and emissions.
Hot water steam boilers are categorized in various ways. Different classification standards correspond to differences in boiler structure, performance, and application scenarios. Clear classifications help industrial users select the most appropriate boiler type for their needs and provide a clear technical framework for boiler design, manufacture, maintenance, and management. The following will classify and explain industrial hot water steam boilers in detail according to the six classification standards of structure, pressure, fuel, function, circulation method and installation method.
Structure is one of the most fundamental aspects of boiler classification. Boilers are categorized as fire-tube, water-tube, tubular, and condensing boilers, primarily based on the contact pattern and layout of the heating surface with the flue gas and water.
The structural characteristic of a fire-tube boiler is that "flue gas flows within the tubes, while water surrounds them." Its core component is the boiler shell, which houses multiple fire tubes. High-temperature flue gas generated by fuel combustion in the furnace enters the fire tubes, where it transfers heat through the tube walls to the water within the shell. The advantages of fire-tube boilers include a simple structure, easy manufacturing process, good operational stability, relatively low water quality requirements, and low initial investment costs. However, their disadvantages include limited heating surface area, low thermal efficiency, large boiler size, and a large footprint. Furthermore, due to the large amount of water stored within the boiler shell, the pressure rise is slow, making them unsuitable for industrial applications requiring high-pressure steam or high-load heating. They are primarily used for low-load steam or heating needs in small and medium-sized industrial enterprises. Water-tube boilers, in contrast to fire-tube boilers, utilize a structure where water flows within the tubes and flue gas flushes outside. They primarily consist of water-wall tubes, convection tube bundles, and a boiler drum. Water flows within the tubes, while the high-temperature flue gas transfers heat to the water inside through radiation and convection. Water-tube boilers offer a large heating surface and high thermal efficiency. Due to the relatively small water volume within the tubes, the pressure rises rapidly, enabling rapid steam production in industrial processes. They also have a strong pressure-bearing capacity and can be designed as high- and ultra-high-pressure boilers, making them suitable for applications requiring high-parameter steam or high-load heating. However, water-tube boilers are complex in structure, require rigorous manufacturing processes, and have strict water quality requirements. This leads to high initial investment costs and greater operational and maintenance complexity.
A tubular boiler is a special type of water-tube boiler, characterized by the absence of a drum. Instead, water flows through a continuous series of spiral or straight tubes, directly absorbing heat from the flue gas and heating or vaporizing it. Cross-flow boilers are extremely compact, occupying only 1/3 to 1/2 the floor space of traditional fire-tube boilers. They are lightweight and easy to install, and their rapid water flow within the tubes results in high heat transfer efficiency and quick startup. They are suitable for industrial applications with limited space and demanding startup times. However, the thin heating surface tubes of cross-flow boilers require extremely high water quality, and their load adjustment range is relatively narrow, making them unsuitable for long-term continuous operation with large load fluctuations.
Condensing boilers are based on traditional boilers but incorporate flue gas condensation and waste heat recovery. Their core design utilizes low-temperature return water to cool the boiler's exhaust gas, condensing the water vapor in the flue gas into water, releasing the latent heat of vaporization and further improving the boiler's thermal efficiency. While the exhaust temperature of conventional boilers is typically above 150°C, condensing boilers can reduce this to 50-70°C, boosting thermal efficiency to over 95%, or even exceeding 100%. Condensing boilers are suitable for heating systems with lower return water temperatures, such as low-temperature floor radiant heating systems or low-temperature waste heat recovery systems in industrial production. Due to their low exhaust temperature, nitrogen oxide emissions are also reduced, making them more environmentally friendly. However, condensing boilers have a higher initial investment cost, and the condensate is somewhat acidic, requiring condensate treatment to prevent corrosion.
Industrial hot water steam boilers can be categorized by their rated working pressure into low-pressure, medium-pressure, and high-pressure industrial boilers. These pressure levels directly determine the boiler's applicable applications and design standards.
The rated working pressure of a low-pressure boiler typically does not exceed 2.5 MPa, corresponding to a saturated steam temperature of approximately 223°C. The rated outlet water pressure of a hot water boiler does not exceed 1.6 MPa, and the rated outlet water temperature does not exceed 120°C. Low-pressure boilers have a relatively simple structural design, require less material strength, are low-cost to manufacture, and are easy to operate and maintain. They are suitable for industrial applications with low steam parameter requirements, such as fabric drying in textile mills, raw material cooking in food factories, and heating reactions in small chemical plants. They are also widely used in district heating systems to provide hot water for residential and commercial buildings.
Medium-pressure boilers have a rated operating pressure range of 2.5MPa-5.9MPa, with saturated steam temperatures of approximately 223°C-263°C. Some medium-pressure steam boilers can also generate superheated steam, typically between 300°C and 400°C. Medium-pressure boilers have higher material strength requirements than low-pressure boilers, requiring the use of high-quality carbon steel or low-alloy steel. Their structural design emphasizes enhanced pressure control and safety features, resulting in relatively high thermal efficiency. These boilers are suitable for medium-sized industrial production applications, such as synthesis reactions in medium-sized chemical plants, pulp cooking in paper mills, and component heat treatment in machinery manufacturing plants. These processes typically require higher-temperature steam to improve reaction efficiency or processing quality. The rated operating pressure of high-pressure industrial boilers generally ranges from 6.0 MPa to 10 MPa, corresponding to saturated steam temperatures of approximately 263°C to 311°C, and superheated steam temperatures reaching 400°C to 540°C. The design and manufacture of high-pressure industrial boilers must adhere to strict technical specifications. High-strength alloy steels are often used, and the heating surface layout is complex. These boilers require efficient combustion control systems, pressure regulation systems, and safety protection systems to ensure stable operation under high-pressure and high-temperature conditions. These boilers are primarily used in large-scale industrial applications with demanding steam parameters, such as catalytic cracking reactions in large petrochemical plants, auxiliary steam in thermal power plants, and heating large forgings in heavy machinery manufacturing. The high-pressure steam they produce not only meets process requirements but also serves as a power source for driving equipment such as steam turbines.
It is important to note that the classification of boiler pressure levels is not absolutely standardized and may vary slightly across countries and industries. However, the core principle is based on safe operation and process compatibility. Higher pressures increase the stringent requirements for materials, manufacturing, installation, and maintenance, requiring specialized technicians to operate and manage the boiler.
Classifying industrial boilers by fuel type is crucial when selecting a boiler. Boilers using different fuels differ significantly in structure, combustion system, and environmental protection equipment configuration. They are primarily categorized as gas-fired, oil-fired, coal-fired, biomass-fired, and electric-fired boilers. Gas-fired boilers use gas as their energy source and utilize gas burners in their combustion system. They boast thermal efficiencies of up to 90%-98%, and offer advantages such as compactness, fast startup, low noise, and minimal pollution. They are suitable for applications with abundant natural gas and high environmental protection requirements. Oil-fired boilers use liquid fuel as their energy source, offering high energy density and stable heating. However, they also have high operating costs and require dust removal equipment. They are suitable for applications with no natural gas supply or large fluctuations in heating load. Coal-fired boilers use coal as their energy source, offering low fuel costs but low combustion efficiency, high pollution, and the need for complex environmental protection equipment. They are suitable for applications with abundant coal and relaxed environmental protection requirements. Biomass boilers use biomass fuel as their energy source, offering good environmental performance but low calorific value and poor combustion stability. They are suitable for applications with developed agriculture and forestry or those pursuing sustainable development. Electric heating boilers convert electricity into heat through electric heating tubes. They offer zero pollution and high control precision, but they also have high operating costs and strict grid requirements, making them often used as auxiliary or backup boilers.
By function, industrial hot water steam boilers are categorized as heating boilers and industrial steam boilers. These two types differ significantly in design, parameters, and application. Heating boilers primarily provide heat and are used for heating industrial buildings and residential areas. They have a rated outlet water temperature of 80°C-95°C, a return water temperature of 60°C-70°C, and an operating pressure not exceeding 1.0 MPa. They prioritize stable water temperature and circulation efficiency, feature control systems that flexibly adjust loads, have large water capacities, and are equipped with exhaust filtration devices. They operate primarily in winter and require maintenance during the non-heating season. Industrial steam boilers are centered around steam production, providing heat and power for production. Steam parameters vary widely depending on the process, ranging from low-pressure saturated steam to high-pressure superheated steam. They prioritize steam quality and stable operation. They are equipped with separation, filtration, and pressure regulation devices based on industry requirements to quickly respond to load fluctuations caused by production schedules. Some also feature heat accumulators to balance supply and demand. They typically operate continuously year-round, requiring rigorous routine maintenance to avoid production interruptions.
Based on the circulation method of water or steam-water mixture within the boiler, they can be categorized as natural circulation boilers and forced circulation boilers. Natural circulation boilers utilize the density difference between water and the steam-water mixture to achieve circulation. Their core structure includes a boiler drum and downcomers. During operation, some water within the water-wall tubes vaporizes to form a steam-water mixture. This density difference causes the mixture to rise to the boiler drum, separating the steam and water. The separated water then mixes with makeup water and flows back into the water-wall tubes. They do not require an additional circulation pump, resulting in a simple structure and low maintenance costs. However, these boilers suffer from weak circulation power and slow speed, are prone to localized overheating, and are suitable for medium- and low-pressure boilers, and have a long startup time. Forced circulation boilers rely on a circulating pump to propel the medium. The core structure includes the circulating pump, which increases circulation speed, enhances heat transfer, and evenly distributes the heat load. This allows for quick startup, a wide range of applicable pressures, and flexible heating surface layout. However, the need for a circulating pump increases investment and energy consumption, places high demands on water quality, and can easily cause accidents in the event of a malfunction. These boilers are often used in high-pressure industrial steam boilers and large-capacity heating boilers.
Boilers can be categorized by installation method as either horizontal or vertical. The installation method primarily depends on the boiler's structural dimensions, site space conditions, and energy requirements, directly affecting the boiler's installation difficulty, floor space, and ease of maintenance.

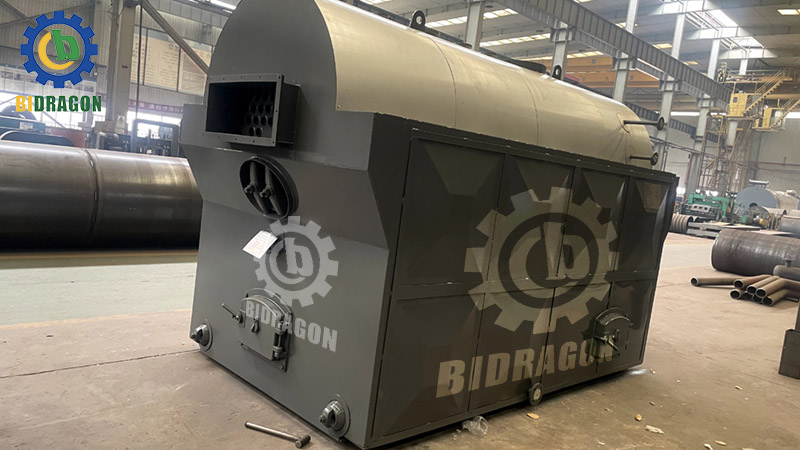

Horizontal boilers have a horizontal shell or furnace. Their core characteristic is a larger footprint but a lower height, making them suitable for plants with limited height or where easy maintenance is required. The heating surface of a horizontal boiler is typically arranged horizontally. During maintenance, operators can directly access the furnace or both sides of the boiler shell, eliminating the need for a tall inspection platform. This makes maintenance highly convenient. Horizontal boilers also have a low center of gravity, resulting in excellent operational stability and less prone to vibration-induced equipment shifting, making them suitable for long-term, continuous operation. In industrial settings, horizontal boilers cover a wide range of capacities, from small horizontal oil- and gas-fired boilers to large horizontal coal-fired boilers. However, installation of horizontal boilers requires a significant amount of horizontal space, necessitating advance planning of the plant layout. Furthermore, piping connections must be arranged horizontally, potentially increasing pipe resistance. Therefore, optimal pipe diameter and routing are crucial to minimize energy losses.
Vertical boilers, with their vertically arranged shell or furnace, are characterized by their compact footprint and high height, making them suitable for limited plant floor space or confined spaces. Vertical boilers are compact, typically employing an "upper furnace, lower drum" or "lower furnace, upper drum" layout. With the heating surface arranged vertically, they effectively utilize vertical space and occupy only one-third to one-half the floor space of a horizontal boiler of the same capacity. For example, vertical gas-fired steam boilers are commonly used for cooking equipment in the catering industry or for localized heating in small workshops. They can be installed directly against a wall or in a corner, eliminating the need for central production space. However, vertical boilers are relatively tall, requiring an inspection platform for maintenance, increasing maintenance costs and complexity. Their high center of gravity can affect equipment stability if vibrations occur during operation, necessitating a secure foundation during installation. Furthermore, vertical boilers typically have a small capacity, with a maximum evaporation rate typically exceeding 4 t/h. They are unsuitable for the high-load steam demands of large-scale industrial production and are primarily used for auxiliary heating or emergency steam generation in small industrial settings.
The efficiency and performance of hot water steam boilers impact operating costs and energy efficiency. In industrial settings, a combination of technologies is required to improve thermal efficiency, optimize heat transfer performance, and reduce energy consumption. The key to improving thermal efficiency lies in controlling heat loss. Heat loss from flue gas accounts for the highest proportion, which can be solved by installing waste heat recovery devices in the flue gas pipeline, such as economizers, air preheaters, and condensing heat exchangers. These are suitable for different types of boilers and can significantly improve thermal efficiency. To reduce heat loss, the boiler body and piping system need to be insulated, using appropriate insulation materials and ensuring that the thickness meets the standards. Combustion optimization is also an important link. Different types of boilers need to reduce incomplete combustion heat loss by adjusting the fuel-air mixture ratio, combustion temperature, and time. For example, gas boilers use proportional regulation burners, oil boilers optimize atomizers, and coal-fired boilers adjust the grate speed. At the same time, intelligent combustion control systems can further improve combustion efficiency. In addition, the optimization of heat transfer performance is closely related to the design and maintenance of the heating surface. During the design phase, the heat transfer coefficient can be improved by increasing the heating surface area and optimizing the layout. During the operation phase, the heating surface dust and scaling are regularly cleaned to avoid affecting the heat transfer efficiency and increasing fuel consumption.
As special pressure-bearing equipment, hot water steam boilers are subject to high temperatures and high pressures during operation. Improper safety management and maintenance can easily lead to serious accidents. Therefore, the configuration and regular maintenance of safety protection devices are extremely critical. The safety valve, pressure controller, and bursting disc of the overpressure protection system work in conjunction. The safety valve is set to open at 1.05-1.1 times the rated pressure, automatically opening and releasing pressure in the event of overpressure, and closing when the pressure drops to 0.95-1.0 times the rated pressure. Industrial boilers should be equipped with at least two such devices and calibrated annually. The pressure controller monitors the pressure, triggering an alarm at 1.05 times the rated pressure and shutting off fuel at 1.1 times the rated pressure. The bursting disc is designed for special operating conditions and is designed to operate at a pressure 5%-10% higher than the safety valve and requires regular replacement. Furthermore, the water level protection device shuts off combustion and issues an alarm when the water level is low. Regular inspections include daily, monthly, and annual inspections, with operators, maintenance personnel, and specialized agencies responsible for different levels of inspection and maintenance. Water quality management involves feedwater treatment and in-boiler chemical addition to remove calcium and magnesium ions, adjust pH, and form a protective film. Regular blowdown is also implemented to control boiler water indicators, with the discharge volume limited to 2%-5% of the feedwater volume, ensuring safe operation and longevity of the boiler.
With rising global environmental awareness, controlling pollutant emissions from industrial boilers has become a key industry priority. Nitrogen oxides are the primary pollutant, with thermal sources accounting for 60%-80% and increasing exponentially with increasing temperature. Control measures utilize a combination of low-NOx combustion and tail-stage denitrification. The former, such as staged combustion, flue gas recirculation, and low-NOx burners, reduces emissions at the source, while the latter, such as SCR and SNCR, targets post-combustion treatment. CO2 emission control relies on optimizing the energy mix and improving energy efficiency. Large enterprises are also exploring carbon capture and storage technologies. Particulate matter primarily originates from coal- and biomass-fired boilers. Dust removal utilizes bag filters, electrostatic precipitators, and cyclone dust collectors, and optimized fuel pretreatment can also be used to reduce emissions at the source. Emission limits vary by region. Enterprises must select appropriate technologies based on environmental standards, fuel type, and other factors to ensure compliance and economic viability.
The installation and operation of industrial hot water steam boilers must strictly adhere to technical specifications and operating procedures to ensure safe, stable operation and extend the lifespan of the equipment. During installation, space and ventilation planning should be based on the boiler type, capacity, and local safety regulations. For example, horizontal boilers must meet the requirements of "accessibility + maintenance space + safety distances." Vertical boilers must ensure adequate overhead clearance. Ventilation design should address both combustion and heat dissipation requirements, and firefighting equipment should be installed in accordance with international standards. Regarding operation, the monitoring and automation system monitors core parameters such as pressure and temperature in real time and automatically adjusts equipment status. It also features data storage and remote monitoring capabilities. Operation must adhere to standardized procedures, such as pre-startup inspections, gradual temperature and pressure increases, regular data logging during operation, and step-by-step procedures during shutdowns. Professional operator training should also be provided to minimize operational risks.
The classification system for hot water steam boilers is central to industrial model selection. Different standards define their technical characteristics and applicable scenarios across multiple dimensions, such as structure and pressure. These interrelated dimensions provide a framework for enterprises to select boilers based on production, energy, site, and environmental requirements. The appropriate boiler type is the foundation for efficient and safe operation, ensuring it meets process parameters, reduces energy consumption, complies with environmental requirements, saves space, and ensures operational safety. Against the backdrop of increasingly stringent energy and environmental requirements, boiler technology is evolving toward "high efficiency, low carbonization, and intelligentization." Technologies such as low-NOx combustion, waste heat recovery, and automation will become more widely adopted in the future, and the exploration of clean energy will also contribute to the "dual carbon" goals. Therefore, understanding boiler classification and integrating practical application with technological trends is key to achieving sustainable development for enterprises.
