Fertilizer production is a complex chemical process encompassing multiple key steps, including raw material pretreatment, synthesis reactions, and product separation and refining. The production processes of common fertilizer products, such as ammonia, urea, and compound fertilizers, all require specific temperature and pressure conditions, and maintaining these conditions is highly dependent on a stable energy supply. Heat and steam, as core energy carriers in chemical production, play an indispensable role in the fertilizer production process. They not only provide the necessary activation energy for various chemical reactions, ensuring their smooth progress, but are also used for heating, concentrating, drying materials, and maintaining equipment insulation, directly impacting production efficiency and product quality.

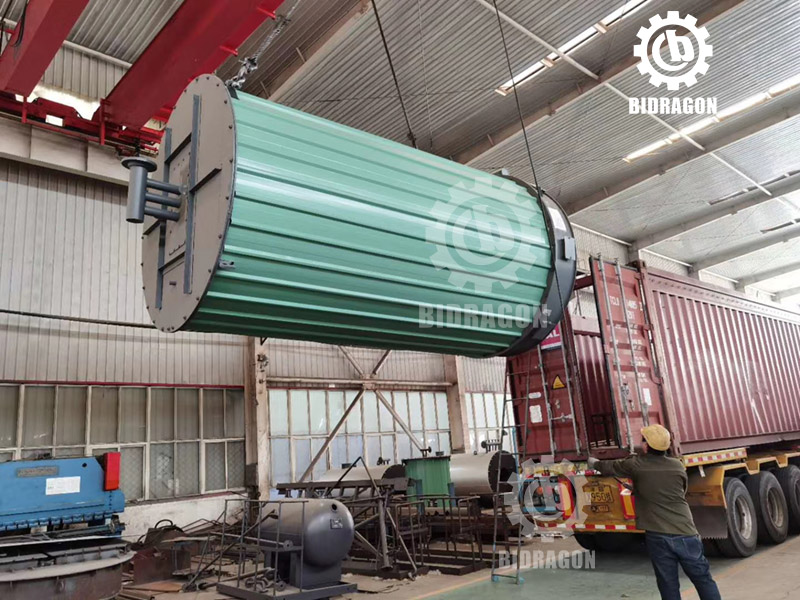

Industrial boilers are key equipment used to generate steam or hot water in chemical production. Their basic components typically include a furnace, a drum, a heating surface, a combustion system, a steam-water system, a flue gas system, and control and safety devices. These components work together to achieve fuel combustion, heat transfer, and steam generation. Based on fuel type, industrial boilers can be categorized as coal-fired, oil-fired, gas-fired, and biomass-fired. Boilers using different fuel types differ in fuel supply, combustion efficiency, and pollutant emissions. Based on operating pressure, they can be further categorized as low-pressure, medium-pressure, high-pressure, and ultra-high-pressure boilers. Different pressure levels determine the parameters of the steam generated by the boiler, which in turn affects its applicability in different chemical processes. In the fertilizer and chemical industries, gas-fired and coal-fired boilers are more widely used, given the production process's requirements for steam parameters and the availability and affordability of fuel. Medium- and high-pressure boilers, which can provide higher-parameter steam and meet the high-temperature and high-pressure reactions required in production processes such as synthetic ammonia and urea, are more common in large-scale fertilizer plants.
The production of ammonia, urea, and compound fertilizers is energy-intensive and typically characterized by high energy demand. In ammonia production, from raw material conversion and refining to ammonia synthesis, each stage consumes significant energy, with the ammonia synthesis process being particularly energy-intensive. Urea production uses ammonia and carbon dioxide as raw materials, undergoing a synthesis reaction under high temperature and high pressure. Subsequent separation and purification steps also require continuous energy input. While compound fertilizer production is relatively flexible, processes such as material mixing, granulation, and drying also rely on energy. From a production perspective, raw material pretreatment requires heat energy for heating, drying, or pre-treating the raw materials in preparation for subsequent reactions. The synthesis reaction stage is most critical for heat and steam demand, relying on steam to maintain the specific temperature and pressure conditions to ensure the desired conversion rate and selectivity. In the product separation and refining stages, steam is often used for operations such as concentration and distillation to effectively separate the product from impurities. The product drying stage requires heat energy to remove moisture from the product to ensure product quality and stability. The stability and rationality of process heat supply are directly related to production efficiency. Insufficient or fluctuating heat supply can lead to reduced reaction rates, lower conversion rates, and even production interruptions. Reasonable heat distribution and utilization can optimize process conditions, increase equipment utilization, and thus improve overall production efficiency.
Industrial boilers convert chemical energy into thermal energy by burning fuel. This heat is transferred to water within the boiler drum, causing it to vaporize and generate steam. This steam is then distributed through the steam pipe network according to the needs of various stages of fertilizer production. During this distribution process, steam parameters are adjusted based on the steam parameter requirements of each process using pressure reducing valves, desuperheaters, and other equipment to ensure that the steam delivered to each steam point meets process requirements. Steam plays a key role in the heating and concentration reactions in fertilizer production. During the heating process, steam transfers heat to the material through a heat exchanger, raising the material temperature to the required process level, ensuring feedstock pretreatment and maintaining reaction conditions. During the concentration reaction, the heat provided by steam removes moisture from the material, increasing its concentration and promoting the reaction toward the target product. In the evaporation and concentration stage of urea production, a stable steam supply directly affects the concentration of the urea solution and, in turn, the quality of the final product.
In an ammonia synthesis plant, steam is used throughout several key stages. In the reforming stage, whether it's natural gas steam reforming or coal-to-gas reforming, high-temperature steam is required to provide the necessary energy for the reaction. This allows the feedstock and steam to react under the action of a catalyst, producing synthesis gas rich in hydrogen and carbon monoxide. In the synthesis stage, the ammonia synthesis reaction requires high pressure and temperature. Steam is not only used to heat the reactants and maintain the required temperature conditions, but also to drive equipment such as compressors to provide the necessary pressure for the system. In the recovery stage, steam is used to heat the process gas, promoting the separation and recovery of useful components, improving feedstock utilization, and reducing waste. There is a close interaction between industrial boiler output and process energy balance. Boiler output steam parameters must match process requirements. Insufficient boiler output or low steam parameters will lead to energy shortages in the process system, affecting reaction efficiency and production progress. Conversely, excessive output or excessively high parameters will waste energy and increase production costs. Furthermore, the process system's energy consumption is fed back to the boiler control system, prompting the boiler to adjust combustion conditions based on actual demand and optimize steam output to maintain energy balance across the entire production system.
In fertilizer plants, many key equipment, such as compressors and pumps, require a reliable power source. High-pressure steam generated by industrial boilers drives steam turbines, which in turn drive the compressors and pumps through transmissions. In synthetic ammonia production, processes such as feed gas compression, recycle gas pressurization, and ammonia transportation all rely on the power provided by turbine-driven compressors and pumps. The stable operation of these equipment directly determines the continuity and efficiency of synthetic ammonia production. Furthermore, industrial boilers play a vital role in power generation within fertilizer plants. Some fertilizer plants have their own power stations, utilizing high-pressure steam from industrial boilers to drive steam turbine-generators. This generated electricity meets the power needs of production equipment, auxiliary systems, and office and living needs within the plant, reducing reliance on the external power grid and improving the autonomy and stability of energy supply. Furthermore, when the power supply is sufficient, excess electricity can be connected to the grid as needed, increasing the company's economic benefits.
To achieve the rational distribution and efficient utilization of thermal energy, fertilizer plants typically construct a comprehensive heat network system. This network, comprised of steam pipes, valves, heat exchangers, and monitoring equipment, transports steam generated by industrial boilers to various steam-consuming units and flexibly adjusts the system based on the unit's steam usage priorities and fluctuating demand. A tiered steam utilization strategy is employed: high-pressure steam is first used to meet the needs of high-pressure steam-consuming equipment. The discharged low-pressure steam or condensate is then used for heating, insulation, and other low-pressure steam-consuming processes. This achieves a tiered utilization of steam energy and improves energy efficiency. Condensate recovery is a key component of thermal energy distribution and efficiency optimization. During use, steam condenses into water, which has a high heat content and high water quality. This condensate is collected by a condensate recovery system, treated appropriately, and then returned to the boiler feedwater system. This not only recovers heat and reduces fuel consumption, but also conserves water resources, lowers water treatment costs, and achieves energy recycling within the plant.
Ammonia plants generate a significant amount of process waste heat during production, such as waste heat from the synthesis tower outlet and waste heat from the reformer flue gas. Waste heat boilers, as a special type of industrial boiler, effectively recover this waste heat. These waste heat boilers use this process waste heat to heat feed water, generating steam. This steam can be used in production processes or to drive steam turbines for power generation, thus recycling waste heat and reducing energy waste. Furthermore, waste heat recovery lowers the exhaust gas temperature, reduces heat emissions to the environment, and improves the surrounding environment. Optimizing the operation of industrial boilers plays an important role in reducing emissions and improving energy sustainability. The use of efficient combustion technologies and desulfurization, denitrification, and dust removal equipment can effectively reduce emissions of nitrogen oxides (NOx), sulfur dioxide (SOx), and particulate matter during boiler combustion. Promoting the use of clean fuels, such as natural gas and biomass fuels, to replace traditional highly polluting fuels can reduce pollutant generation. Furthermore, through technologies such as waste heat recovery and condensate recovery, energy efficiency can be improved, energy consumption per unit product can be reduced, and carbon dioxide (CO₂) emissions can be reduced, pushing fertilizer plants towards energy sustainability.
In a fertilizer plant's production system, the configuration of industrial boiler auxiliary systems must be closely optimized to meet the requirements of the fertilizer process. The feedwater treatment system, as a core guarantee, is directly related to the continuity of high-energy-consuming processes such as urea synthesis and ammonium nitrate production. Fertilizer production raw water often contains impurities such as calcium, magnesium, and ammonia nitrogen. These substances not only cause boiler scaling but can also react with the alkaline medium under high-temperature conditions, exacerbating metal corrosion. Therefore, treatment processes such as enhanced precipitation, precision filtration, deep softening, and deamination and desalination are required to ensure that water quality meets the stringent steam quality requirements of key processes such as urea melting and nitric acid concentration.
As a key feedwater treatment device, the deaerator has a dual mission in a fertilizer plant: first, it uses thermal deoxygenation technology to reduce dissolved oxygen in the water, preventing oxygen corrosion in equipment such as steam pipes and urea synthesis towers. Second, given the unique carbon dioxide-rich conditions of fertilizer production, free carbon dioxide must be removed simultaneously to prevent it from combining with water to form carbonic acid, which accelerates electrochemical corrosion of equipment. Condensate recovery systems play a vital role in energy conservation and consumption reduction in fertilizer plants. For example, the high-temperature condensate generated during the ammonia synthesis process contains a significant amount of waste heat. This recovery system, comprised of collection pipes, steam traps, recovery pumps, and iron removal equipment, not only recycles the heat for raw material preheating but also uses the treated condensate as wash water in the gasification process or as boiler feed water, achieving cascaded utilization of water resources. Data shows that by improving its condensate recovery system, a medium-sized fertilizer plant has reduced fresh water usage by over 100,000 tons annually and lowered water treatment costs by approximately 30%.
The boiler control and safety monitoring system intelligently regulates and controls the dynamic needs of fertilizer production. During the granulation stage of urea production, the system monitors steam pressure, temperature, and flow in real time to precisely adjust fuel supply and air volume ratios to ensure stable steam parameters. If an anomaly occurs in the ammonium nitrate crystallization process, the system immediately activates a safety valve to relieve pressure and adjusts valves in the steam pipeline to prevent safety risks caused by sudden pressure increases, thus strengthening the safety barrier for fertilizer production.
Improving boiler thermal efficiency and reducing fuel consumption are key goals of fertilizer plant energy optimization, and these can be achieved through a variety of methods. In boiler design and modification, adopting efficient heating surface structures increases heat transfer area and improves heat transfer efficiency. Optimizing furnace structure improves fuel combustion conditions, ensuring complete fuel combustion and reducing incomplete combustion losses. Equipping boilers with high-efficiency insulation materials reduces heat dissipation losses. In terms of operational management, properly controlling boiler loads avoids prolonged operation under or overload conditions, maintaining operation within the economic load range. Strengthening fuel management ensures stable fuel quality, adjusting combustion parameters based on fuel characteristics, and improving combustion efficiency. Regularly cleaning and descaling boiler heating surfaces reduces heat transfer resistance and improves thermal efficiency. Integration with cogeneration and waste heat recovery systems is an effective way to improve comprehensive energy efficiency. A cogeneration system uses steam generated by industrial boilers to drive turbines for power generation, which is then used to meet heating needs during the production process. This achieves the combined production of electricity and heat, significantly improving energy efficiency compared to separate power generation and heat generation. Integrating industrial boilers with waste heat recovery systems fully recovers waste heat generated during the process and heat from boiler exhaust gases, which can be used to heat boiler feedwater or preheat combustion air, reducing fuel consumption and further improving overall energy efficiency. Data-based monitoring and optimization control utilizes advanced sensor technology and data acquisition and processing systems to collect real-time data on various boiler operations, such as steam parameters, fuel consumption, flue gas composition, and equipment operating status. By developing mathematical models and employing optimization algorithms, this data is analyzed and processed to identify weaknesses and areas for improvement in boiler operation. Based on the analysis results, the system automatically adjusts operating parameters, such as fuel supply, air flow, and feedwater flow, to achieve optimal boiler operation. Furthermore, analysis of historical data provides a scientific basis for boiler maintenance, fault diagnosis, and production planning.
In terms of emission control, effective technologies are required to control pollutants such as nitrogen oxides (NOx), sulfur dioxide (SOx), and carbon dioxide (CO₂) generated during the combustion process of industrial boilers. For NOx control, low-NOx burners can be used to optimize the combustion process and reduce NOx generation. Alternatively, selective catalytic reduction (SCR) or selective non-catalytic reduction (SNCR) technologies can be used to reduce NOx in flue gas to harmless nitrogen and water. For SOx control, desulfurization treatment is commonly used, such as wet desulfurization, dry desulfurization, and semi-dry desulfurization. Desulfurization agents (such as limestone, lime, and ammonia) are added to the flue gas to chemically react with SOx, producing solid substances such as sulfates, thereby removing SOx from the flue gas. To control CO₂, carbon capture, utilization, and storage (CCUS) technology can be employed to capture CO₂ from boiler flue gases. After purification, it can be used in oil extraction, chemical production, and other fields, or stored geologically, reducing CO₂ emissions into the atmosphere. Clean fuels and a low-carbon transition are key areas for fertilizer plants to achieve environmentally friendly development. This involves gradually reducing the use of highly polluting, high-carbon-emitting fuels (such as raw coal) and promoting the use of clean fuels such as natural gas, biomass, and hydrogen. These fuels produce lower levels of pollutants and CO₂ during combustion, helping to reduce the environmental impact of fertilizer plants. Furthermore, efforts should be made to increase the research and development and application of low-carbon technologies, such as developing integrated operation models for renewable energy (solar and wind power) and industrial boilers, to reduce reliance on traditional fossil fuels and promote the transition of fertilizer plants to low-carbon production methods. Fertilizer plants must strictly comply with local environmental regulations in their operations, regularly monitor and test pollutants emitted by boilers to ensure that emissions meet regulatory standards, actively fulfill their environmental protection responsibilities, and achieve sustainable operations through the adoption of advanced environmental technologies and strengthened environmental management.
The fertilizer production process has strict temperature and pressure requirements. Large fluctuations in temperature or pressure not only affect reaction efficiency and product quality but can also cause equipment damage, explosions, and other safety hazards. As the primary heat source, industrial boilers provide a continuous and stable supply of heat and steam for the production process. By precisely controlling boiler operating parameters to ensure stable steam temperature and pressure, they maintain the temperature and pressure of the process system within the specified range, providing a safe and reliable process environment for fertilizer production and ensuring the safe operation of the production process. Reliable operation of industrial boilers is a key factor in preventing unplanned production shutdowns in fertilizer plants. A boiler failure or shutdown can disrupt steam supply, disrupting steam-dependent production processes and ultimately halting the entire fertilizer production system, resulting in significant economic losses. Therefore, fertilizer plants must strengthen the maintenance of their industrial boilers, conducting regular equipment inspections, repairs, and maintenance to promptly identify and eliminate potential faults, ensure boilers are always in good operating condition, improve boiler reliability, reduce downtime, and ensure the continuity and stability of fertilizer production. To further enhance the safety and stability of industrial boiler operation, fertilizer plants typically employ redundant designs. For example, multiple boilers are installed so that if one fails, the others can immediately resume operation, ensuring uninterrupted steam supply. Furthermore, improved system monitoring systems are implemented, with various sensors and monitoring equipment installed to monitor boiler operating parameters and equipment status in real time. Upon detecting an abnormality, the monitoring system promptly issues an alarm and automatically initiates emergency measures, such as activating backup equipment and adjusting operating parameters, to prevent further failures and ensure the safe and stable operation of the boiler system.
Industrial boilers occupy a central position in the overall energy network of a fertilizer plant. They are key nodes in energy conversion and supply, converting the chemical energy of fuel into heat and steam, providing the primary energy source for the entire fertilizer production process. Much of the steam, electricity, and other energy required for fertilizer production relies directly or indirectly on industrial boilers. For example, steam is used directly for process heating and concentration, while boilers drive turbines to generate electricity to power production equipment. Therefore, the operational status of industrial boilers directly impacts the stability and efficiency of the entire energy network. There is a close coordination relationship between industrial boilers and public utilities such as steam, electricity, and water. The stable operation of the steam system depends on the steam supply of the industrial boiler, and the reasonable distribution and utilization of steam will affect the load adjustment of the boiler. In the power system, the power generation capacity of the captive power station is closely related to the steam output of the boiler. The stability of the boiler steam parameters directly affects the power generation efficiency. At the same time, the power system provides power support for the boiler's auxiliary equipment. In terms of the water system, the boiler's feed water demand depends on the water supply of the water treatment system, and the condensate recovery system recycles and treats the condensate generated by the boiler and reuses it as boiler feed water, realizing the recycling of water resources. The various public projects are interrelated and influence each other, and effective coordination and management are required to maximize the overall energy utilization efficiency. Industrial boilers have a significant impact on fertilizer plant production costs, energy efficiency, and resource utilization. Boiler fuel consumption accounts for a significant portion of the total cost of fertilizer production. Improving boiler thermal efficiency and reducing fuel consumption can directly reduce production costs. Boiler operating efficiency is directly related to the overall energy efficiency of a fertilizer plant. Optimizing boiler operation and strengthening waste heat recovery can significantly improve the energy efficiency of the entire plant. Regarding resource utilization, technologies such as condensate recovery and waste heat recovery enable the recycling of water and energy, reducing the consumption of fresh resources and improving resource utilization efficiency. Therefore, industrial boilers play an irreplaceable and core role in fertilizer plant energy management.
In summary, industrial boilers play a key role in fertilizer plants. They are not only the primary heat source, providing stable steam and heat energy for fertilizer production and ensuring the smooth operation of various process links, but also have important applications in integration with synthetic ammonia and urea plants, power drive, optimized heat energy distribution, and environmental waste heat recovery. Furthermore, they are crucial to the safe and stable production and energy management of fertilizer plants and are core equipment for achieving efficient, environmentally friendly, and sustainable production.
