Boiler stacks, are vertical ducts, passages or similar structures that are integral to industrial boiler systems. They serve as an outlet for the discharge of byproducts from combustion within the boiler, and their primary function is to vent flue gases safely and efficiently. Unlike residential stacks, which often serve both aesthetic and practical functions in small heating systems, industrial boiler stacks are specifically designed to handle large quantities of hot and potentially hazardous gases, ensuring that they are safely vented into the atmosphere away from plant facilities and their personnel.
In an industrial environment, boiler stacks do much more than simply vent gases. They are critical to maintaining proper pressure and ventilation within the boiler system, which directly affects the efficiency of the combustion process. A well-designed and functioning boiler stack helps to ensure that the boiler operates at peak performance, reducing fuel consumption and the production of pollutants such as carbon monoxide, nitrogen oxides and particulate matter. In addition, boiler stacks are critical to regulatory compliance, as they must meet strict environmental standards regarding emissions, thereby protecting the ecosystem and public health.

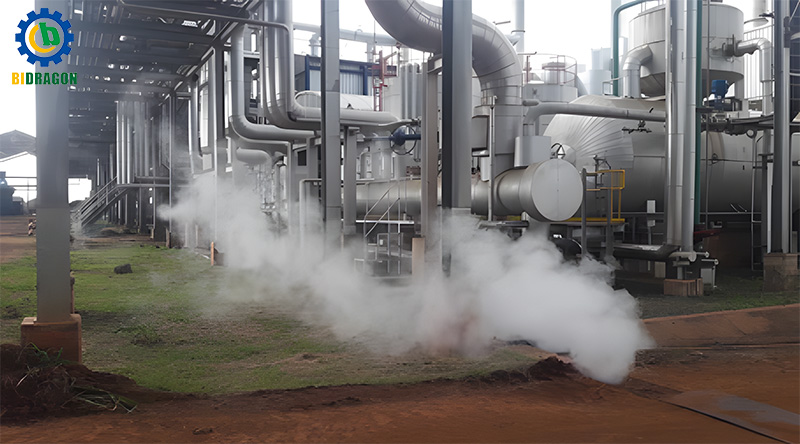

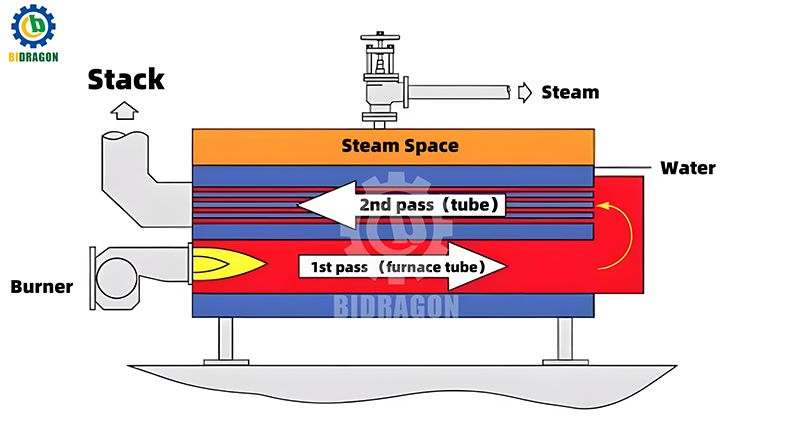

The operation of boiler stacks is based on the principle of natural or forced ventilation. In a natural ventilation system, the hot flue gas inside the stack is less dense than the surrounding air and the resulting buoyancy causes the gas to rise and exit the stack. This upward movement of gases creates a negative pressure inside the boiler, which draws in fresh air for combustion. In contrast, forced draught systems use a fan, usually mounted at the top of the stack or within the flue gas treatment system, to actively draw the flue gases out of the boiler and through the stack. This method allows for more precise control of the draft and is more effective in situations where natural ventilation may not be sufficient.
Condensing boiler stacks are designed to capture and utilize the latent heat in the flue gas that would normally be wasted in a non-condensing system. As the flue gas passes through the stack, its temperature is cooled below the dew point of water vapor, causing it to condense. This condensation releases additional heat that can be recovered and used to preheat incoming combustion air or boiler feedwater, thereby significantly improving the overall efficiency of the boiler system. On the other hand, non-condensing boiler stacks simply vent the flue gas at a higher temperature without attempting to recover this latent heat. While non-condensing stacks are simpler in construction and may have a lower initial cost, condensing stacks offer long-term energy savings and environmental benefits, making them increasingly popular in industrial applications where efficiency and sustainability are important.
The basic structure of a boiler stack is its vertical section, the height, diameter and shape of which can vary according to the specific requirements of the boiler system. The height of the stack is a key factor in determining the effectiveness of ventilation and flue gas diffusion. Taller stacks typically create a greater pressure differential, which creates a stronger draft, helping to draw in more air for combustion and exhaust flue gases more efficiently. However, taller stacks also mean higher construction and maintenance costs. The diameter of the stack affects the flow rate of flue gases; with larger diameters, the gases flow at a lower rate, which reduces erosion and noise, but may also increase the risk of particulate matter being deposited in the stack.
The stack cap sits on top of the boiler stack and serves several important functions. It protects the stack from wind, rain, snow, ice and debris, preventing these substances from entering the stack and causing blockages or damage. In addition, the stack cap is designed to optimize flue gas dispersion and reduce the risk of backdrafts. The flue connector pipe is the connecting part between the boiler and the stack. It must be properly sized and insulated to ensure smooth flue gas flow and minimize heat loss. The stack base provides structural support for the stack and is usually equipped with components such as a cleanout door to facilitate the removal of accumulated debris or soot.
As mentioned earlier, stack height has a significant effect on draft. A taller stack creates a greater pressure differential, which in turn creates a stronger draft, helping to draw in more air for combustion and exhaust flue gases more efficiently. However, building a taller stack increases construction and maintenance costs. The diameter of the stack affects the flow rate and degree of turbulence of the gases inside the stack. The right diameter ensures a smooth flow of flue gases, reducing drag and minimizing heat loss. If the diameter is too small, the gas flow rate will be too high, increasing the risk of erosion and possibly generating noise. Conversely, if the diameter is too large, the gas flow rate may be too low, leading to particulate deposition and reduced efficiency.
The temperature of the flue gas leaving the boiler directly affects the efficiency of the stack. Higher flue gas temperatures mean that more heat is wasted through the stack. In a non-condensing boiler, the flue gas temperature can be reduced by improving heat transfer within the boiler, for example by using better insulation or a more efficient heat exchanger design. In a condensing boiler, the goal is to cool the flue gas below the dew point to recover latent heat. Monitoring and controlling the flue gas temperature is essential to optimize boiler performance and reduce energy consumption.
Proper airflow and draft control is critical for efficient combustion and stack operation. Inadequate airflow can lead to inadequate combustion, produce harmful pollutants and reduce boiler efficiency. Forced draft fans and dampers are used to control airflow and draft within the system. By adjusting the fan speed or damper position, the operator can ensure that the right amount of air is supplied for combustion and that flue gases are efficiently vented. This not only improves the efficiency of the boiler, but also helps maintain stable operating conditions and reduces safety hazards.
Scale buildup in the internal piping of industrial boilers is one of the common causes of high stack temperatures. Over time, soot, scale, and other deposits build up on the heat exchange surfaces of the pipes, reducing their efficiency. This forces the boiler to operate at higher temperatures to achieve the desired output, resulting in higher flue gas temperatures. Excess air during combustion can also lead to high stack temperatures. When too much air is introduced, the excess air carries excess heat out of the system, which raises the stack temperature and reduces boiler efficiency. Corrosion inside the boiler or stack may also cause temperatures to rise. Corroded surfaces may reduce heat transfer capabilities, making the boiler need to work harder, which in turn raises the temperature of the flue gas.
Excessive stack temperatures can be identified by temperature sensors installed inside the stack or on the boiler. Regular monitoring of these temperatures is essential for early detection of potential problems. Once excessive stack temperatures have been identified, the root cause must be determined. If the problem is duct buildup, the ducts can be cleaned using methods such as mechanical brushing or chemical descaling to restore heat transfer efficiency and reduce stack temperatures. In the case of excess air, adjusting the air-fuel ratio and optimizing the operation of the combustion control system can solve the problem. In cases where corrosion is present, repair or replacement of affected components may be necessary, as well as preventative measures such as using corrosion-resistant materials or adding corrosion inhibitors to the water treatment system.
Properly sizing the boiler stack is critical to ensure optimal performance. The size of the stack is determined by factors such as the boiler capacity, the volume of flue gas produced and the required gas flow rate. Accurate sizing calculations are required to ensure that the stack provides adequate ventilation without causing excessive pressure drop or turbulence. Ventilation management is also critical, especially in large industrial boiler systems. Forced draft fans, dampers and other draft control devices must be carefully selected and installed to maintain stable draft conditions and ensure efficient operation.
The choice of materials for boiler stacks is critical as flue gases may contain acidic components, especially in condensing boilers where condensate formation increases the risk of corrosion. In addition to stainless steel, other corrosion-resistant materials can be used, such as nickel-based alloys or specialty polymers. Coating and lining materials such as glass liners or ceramic liners can also be used to enhance the corrosion resistance of the stack. The choice of material depends on factors such as operating temperature, flue gas composition, and the cost-effectiveness of the solution.
The terms “stack” and “chimney” are often used interchangeably, but in the context of a boiler system they differ significantly. A boiler stack (stack) is usually associated with an industrial or commercial boiler system and is specifically designed to vent flue gases from these large-scale heating or power generation facilities. It is usually a precision-engineered structure with exacting design and sizing requirements to handle large quantities of high-temperature flue gases. A chimney, on the other hand, is more commonly used in residential settings. In addition to its function of venting flue gases, it may have a more aesthetic appearance and is used to vent flue gases produced by small heating appliances such as wood-burning stoves, fireplaces, or home boilers.
In industrial applications, boiler stack must be able to handle the large amounts of flue gas produced by powerful boilers. They are subject to strict regulations regarding emissions, ventilation and safety, and require regular maintenance and monitoring to ensure compliance. Industrial stack are also designed to withstand harsh operating conditions, including high temperatures, corrosive gases and mechanical stress. In contrast, residential chimneys are typically smaller in size and handle lower volumes of flue gases. While safety is still an important issue, the regulatory requirements are less stringent than for industrial boiler chimneys. Residential chimneys may also require less frequent maintenance, although they still need to be inspected regularly to prevent problems such as blockages or chimney fires.
One of the primary strategies for protecting industrial boiler stacks from corrosion is to manage the temperature of the flue gas. In non-condensing stacks, keeping the flue gas temperature above the dew point of the acidic components of the gas prevents the formation of corrosive condensate. This can be achieved by operating the boiler correctly, for example by ensuring efficient combustion and minimizing heat loss. In condensing stacks, since the goal is to cool the gas below the dew point to recover heat, special materials and coatings that can withstand the corrosive effects of condensate are required. In addition, heating the stack walls or using insulation to keep the stack temperature above the dew point in critical areas can also help prevent corrosion.
Coatings and linings are widely used to protect boiler stacks from corrosion. Epoxy coatings are a popular choice because they create a durable chemical barrier on the stack surface. Ceramic coatings provide excellent insulation and corrosion resistance for high temperature applications. Glass lining or enamel lining materials are also available, which provide a smooth, non-porous surface that is both corrosion resistant and easy to clean. These coatings and linings are applied during the manufacturing process or as part of maintenance and repair activities to extend the life of boiler stacks and protect them from the damaging effects of flue gases.
Regular inspections are essential to maintain optimum performance of your boiler stack. A comprehensive inspection checklist should include checking the stack walls for signs of corrosion (such as rust or pitting); looking for cracks, leaks, or damage to the stack structure; checking that the stack cap, flue connector pipe, and stack base are functioning properly and are in good condition; and checking the accuracy and operation of the temperature sensors and draft controls. In addition, flue gases should be analyzed periodically to ensure that emissions meet acceptable standards and that the combustion process is efficient.
Cleaning the boiler stack is an important part of maintenance. Soot, debris and other deposits that build up in the stack can reduce its efficiency and increase the risk of blockages. Loose deposits can be removed using mechanical cleaning methods such as brushes or scrapers. For more stubborn deposits, chemical cleaners may be necessary, but care must be taken to ensure that the cleaner does not damage the stack material. Regular lubrication of moving parts, such as dampers and fan bearings, is also necessary to prevent wear and ensure smooth operation. Additionally, following the manufacturer's recommended maintenance schedule for boiler stacks and related equipment is essential to ensure long-term reliability and optimal performance.
The boiler stack is an essential component of an industrial boiler system and plays a key role in safely and efficiently venting flue gases, maintaining proper ventilation, and ensuring regulatory compliance. Understanding their core functions, key components, and the factors that affect their efficiency is critical to optimizing boiler performance. Different types of boiler stacks have their own advantages, and the right design considerations are essential to their effective operation. In addition, protecting boiler stacks from corrosion and implementing regular maintenance measures are essential to maximizing their service life and ensuring continued reliable operation.
In addition, keeping up to date with the latest technologies and best practices in boiler stack design and operation can help organizations improve efficiency, reduce emissions and lower long-term operating costs. By following these recommendations, users can ensure that their industrial boiler stacks are operating at peak performance, contributing to the overall success and sustainability of their organization.
