Oil-fired steam boilers are key equipment in the industrial field for generating high-temperature, high-pressure steam. They release heat energy by burning specific types of fuel oil and transfer this heat energy to water, converting it into steam to meet industrial production needs. Oil-fired steam boilers play a vital role in industrial heating and steam production, providing a stable and continuous steam supply for numerous industrial processes, ensuring the smooth operation of industrial production. Their role is indispensable in both large-scale manufacturing plants and specific industrial facilities.
An oil-fired steam boiler is a thermal energy device that uses fuel oil as fuel. The heat generated by burning the fuel heats water, bringing it to its boiling point and converting it into steam. Simultaneously, the steam pressure is controlled to meet industrial steam demand. The main fuel types include diesel and heavy oil. Different types of fuel oil differ in calorific value, combustion characteristics, and applicable scenarios. Diesel oil typically has high combustion efficiency and low impurity content, making it suitable for applications with high fuel quality requirements. Heavy oil, on the other hand, has a higher calorific value and relatively lower cost, and is often used in large industrial boilers. Based on structure, oil-fired steam boilers can be divided into fire-tube boilers and water-tube boilers. Fire-tube boilers have a relatively simple structure, with water flowing around the fire tubes inside the shell, and heat transferred to the water through the tube walls. Water-tube boilers, on the other hand, have water flowing inside the tubes while the flame burns outside, resulting in higher heat transfer efficiency and making them more suitable for high-parameter, large-capacity steam demand scenarios. Based on application, they can be divided into industrial oil-fired steam boilers and power plant oil-fired steam boilers. Industrial boilers mainly provide steam for heating, drying, and power generation processes in industrial production, while power plant boilers are used in power generation to provide high-temperature, high-pressure steam to steam turbines.

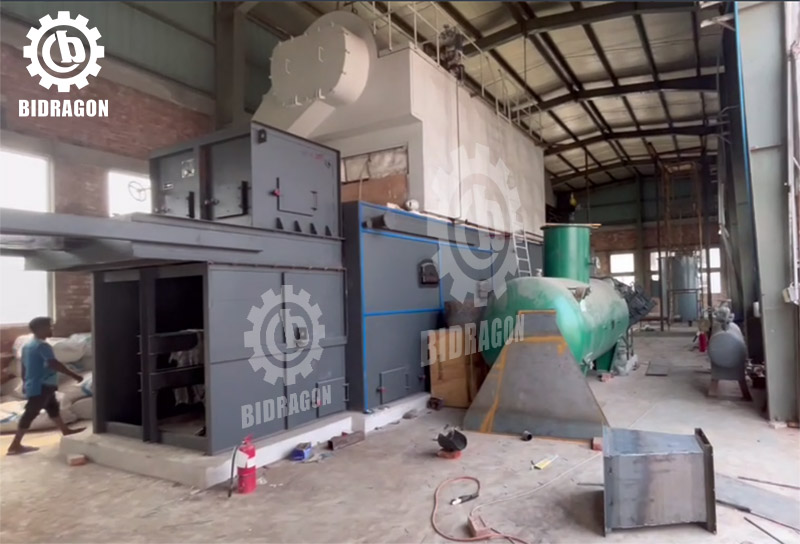

An oil-fired steam boiler consists of several key components that work together to complete the steam generation and supply process. The boiler body is the core load-bearing component of the boiler, mainly composed of the boiler drum, furnace, and heating surfaces. The boiler drum stores a certain amount of water and steam, maintaining stable water level and steam pressure within the boiler. The furnace is the site of fuel combustion, providing the necessary space and conditions for the combustion process. The heating surfaces are crucial for heat transfer; the high-temperature flue gas generated by fuel combustion transfers heat to the water in the boiler drum through these surfaces. The combustion system is responsible for the efficient and stable combustion of fuel oil. It includes a fuel oil supply device, atomizing device, burner, and air supply device. The fuel oil supply device ensures a continuous and even supply of fuel oil to the burner. The atomizing device atomizes the fuel oil into fine droplets, increasing the contact area between the fuel oil and air, thus improving combustion efficiency. The burner is the core component for achieving fuel oil combustion; it thoroughly mixes the atomized fuel droplets with air and ignites them to form a stable flame. The air supply device provides sufficient air for the combustion process, ensuring complete combustion.
The control system is used to monitor and adjust the boiler's operating parameters in real time to ensure safe and efficient operation. It includes a temperature control system, a pressure control system, a water level control system, and a combustion control system. Various sensors collect parameters such as temperature, pressure, and water level within the boiler, and the controller adjusts relevant equipment according to preset parameter ranges, such as adjusting fuel oil supply and air volume. The steam-water system is responsible for water delivery, heating, and steam generation and delivery. It includes a feedwater pump, water treatment equipment, steam pipes, and valves. The feedwater pump delivers treated water to the boiler drum; the water treatment equipment treats the feedwater, removing impurities and hardness substances to prevent scale and corrosion; the steam pipes deliver the generated steam to various steam consumption points; and the valves control the flow direction, flow rate, and pressure of water and steam.
The working principle of an oil-fired steam boiler is a complex but orderly energy conversion and transfer process, involving multiple stages such as oil combustion, heat transfer, steam generation, and steam delivery and control. These stages are closely interconnected, working together to achieve the goal of converting the chemical energy of oil into the thermal energy of steam, and providing usable steam for industrial production.
The oil combustion process is the initial stage for the boiler to obtain thermal energy, and its efficiency and stability directly affect the overall performance of the boiler. First, oil is delivered to an atomizing device through a fuel supply device. Under the action of the atomizing device, the oil is broken into fine oil droplets, forming an oil mist. This atomization process greatly increases the contact area between the oil and air, creating favorable conditions for subsequent complete combustion. Subsequently, the atomized oil mist is delivered to the burner. Simultaneously, an air supply device introduces a certain amount of air into the burner. The oil mist and air are thoroughly mixed inside the burner, forming a uniform combustible mixture. Then, the combustible mixture is ignited by an ignition device, forming a stable flame in the furnace. During combustion, carbon, hydrogen, and other elements in the fuel oil react chemically with oxygen in the air, releasing a large amount of heat energy and producing combustion products such as carbon dioxide and water. To ensure complete combustion, the fuel-air mixing ratio, or air-fuel ratio, needs to be precisely controlled. Insufficient air leads to incomplete combustion, wasting fuel and producing harmful gases such as carbon monoxide, polluting the environment and reducing boiler thermal efficiency. Excessive air carries away a large amount of heat, also reducing thermal efficiency. Therefore, the combustion system adjusts the air-fuel ratio in real time according to the type of fuel oil and combustion conditions to achieve optimal combustion.
Heat transfer and steam generation are key processes for converting the heat energy generated by fuel oil combustion into steam heat energy, mainly achieved through the boiler's heating surfaces. The high-temperature flue gas produced by fuel oil combustion in the furnace can reach temperatures of thousands of degrees Celsius. This high-temperature flue gas flows along the channels of the furnace and heating surfaces. During this flow, heat is transferred to the water on the other side of the heating surface through radiation, convection, and conduction. Radiative heat transfer primarily occurs within the furnace, where high-temperature flames and flue gas directly transfer a large amount of heat to the furnace walls and the boiler drum's heating surfaces via radiation. Convective heat transfer occurs during the flow of flue gas between the heating surfaces, where heat exchange occurs through convection. Conductive heat transfer occurs when heat is transferred from the high-temperature side to the low-temperature side of the water through the metal walls of the heating surfaces. With continuous heat transfer, the water temperature inside the boiler drum gradually increases. When the water temperature reaches the saturation temperature at the corresponding pressure, it begins to boil and gradually transforms into steam.
During steam generation, the water level inside the boiler drum must be strictly controlled. An excessively high water level will cause water carryover in the steam, affecting steam quality and potentially leading to safety accidents such as water hammer in the pipelines. An excessively low water level will expose the heating surfaces, preventing them from receiving sufficient cooling and easily causing overheating and damage. Therefore, the water level control system monitors the water level inside the boiler drum in real time and adjusts the water supply from the feedwater pump to maintain the water level within a reasonable range. As water continuously vaporizes, steam gradually accumulates inside the boiler drum, and the steam pressure increases accordingly. When the steam pressure reaches the set value, the steam enters the superheater for further heating, causing the steam temperature to exceed the saturation temperature, thus becoming superheated steam. Superheated steam has a higher enthalpy value, providing more heat energy for industrial production and meeting the needs of processes with high steam parameter requirements.

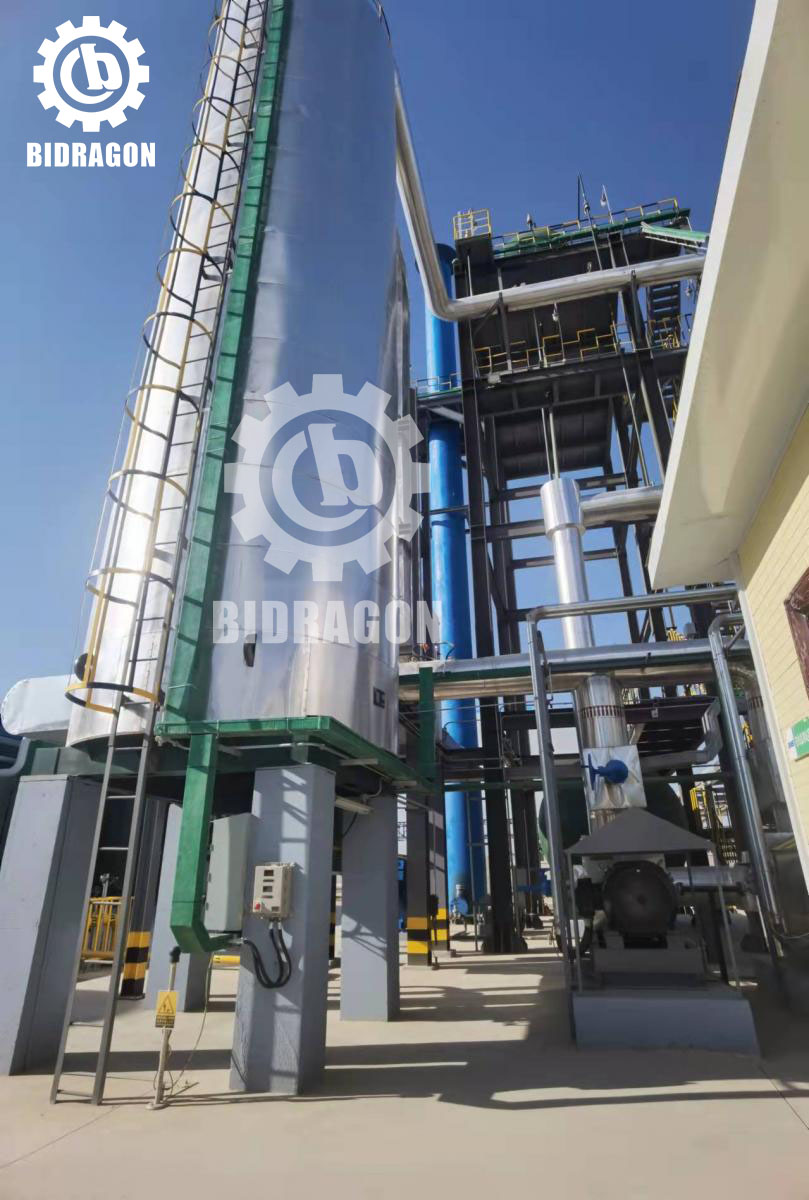

Steam delivery and system control are crucial for ensuring the safe and stable delivery of generated steam to various steam-consuming points and meeting the steam parameter requirements of different steam-consuming equipment. Once the steam generated by the boiler reaches a certain pressure and temperature, it is delivered to the main steam pipeline to the steam header, and then branched from the steam header to various industrial steam-consuming equipment. During steam delivery, to ensure steam quality and delivery safety, a series of valves, pressure gauges, thermometers, and other accessories are installed on the steam pipeline. Valves are used to control the delivery and shut-off of steam, and the steam flow rate can be adjusted according to the needs of the steam-consuming equipment; pressure gauges and thermometers are used to monitor the steam pressure and temperature in real time to ensure that the steam parameters meet the steam consumption requirements. System control plays a crucial role in the steam delivery process. The pressure control system monitors the steam pressure at the steam header or boiler outlet in real time. When the steam pressure exceeds the set value, it adjusts the combustion system to reduce fuel oil supply and air supply, lowering combustion intensity and reducing steam production. Simultaneously, it may open safety valves to release pressure and prevent accidents caused by excessive steam pressure. When the steam pressure falls below the set value, it increases fuel oil supply and air supply, increasing combustion intensity and steam production to maintain stable steam pressure. Furthermore, the temperature control system regulates the superheater heating process according to the steam temperature requirements, ensuring the superheated steam temperature remains stable within the set range. To achieve automated and intelligent boiler operation, modern oil-fired steam boiler control systems typically also include remote monitoring, fault diagnosis, and alarm functions. These systems monitor the operating status of various boiler components in real time, promptly issuing alarm signals and taking corresponding protective measures, such as stopping fuel oil supply and cutting off combustion, to ensure safe boiler operation.
Oil-fired steam boilers offer numerous significant advantages, leading to their widespread application in industrial sectors. First, high thermal efficiency is one of its key advantages. Due to the high calorific value of fuel oil and the combustion system's ability to fully atomize the fuel and uniformly mix it with air, fuel oil can burn completely, maximizing heat release. Simultaneously, the boiler's optimized heating surface design effectively improves heat transfer efficiency and reduces heat loss. Therefore, oil-fired steam boilers can convert the chemical energy of fuel oil into the thermal energy of steam with high thermal efficiency, reducing fuel consumption and saving operating costs.
Second, stable and reliable operation is another prominent feature of oil-fired steam boilers. The fuel oil supply is relatively stable, unlike coal-fired boilers which are easily affected by factors such as coal quality changes and feed uniformity. Furthermore, the combustion system has high control precision, allowing for timely adjustments to combustion conditions based on load changes, ensuring stable operation under various load conditions. Steam pressure and temperature fluctuations are minimal, providing a stable steam supply for industrial production and ensuring the continuity and stability of production processes. In addition, convenient installation and maintenance are also major advantages of oil-fired steam boilers. Compared to coal-fired boilers, oil-fired steam boilers do not require complex coal yards, coal conveying systems, or ash removal systems, requiring less floor space. The installation process is simpler, shortening the installation cycle and reducing installation costs. In terms of maintenance, fuel combustion produces less ash and slag, resulting in less contamination of the heating surfaces. This reduces the workload and frequency of maintenance tasks such as ash removal and slag removal. At the same time, the combustion and control systems have relatively simple structures, making fault diagnosis and repair more convenient, which can reduce maintenance costs and improve equipment availability.
Oil-fired steam boilers, with their stable steam supply capacity and excellent performance, are widely used in many industrial fields. In the food processing industry, oil-fired steam boilers play a crucial role. Many food processing techniques require steam for heating, sterilization, and cooking. For example, in dairy production, steam is used to pasteurize or ultra-high temperature (UHT) sterilize raw milk to kill harmful microorganisms and ensure the quality and safety of dairy products. In meat processing, steam is used to cook meat thoroughly while maintaining its tenderness. In the baking industry, steam is used to regulate humidity inside ovens, improving the taste and appearance of baked goods. In the textile and apparel industry, steam is an indispensable processing medium. During spinning, steam is used to humidify and set the yarn, improving its strength and elasticity and reducing breakage. In weaving, steam is used for pre-shrinking to prevent significant shrinkage during subsequent washing. In ironing, high-temperature, high-pressure steam quickly smooths wrinkles, maintaining a smooth and aesthetically pleasing appearance and improving garment quality. In the chemical and pharmaceutical industries, oil-fired steam boilers provide the necessary heat for various chemical reactions and production processes. In chemical production, many chemical reactions require specific temperature conditions. Steam heats reaction vessels and other equipment, providing the necessary heat to control reaction temperatures and promote smooth reaction processes. Steam is also used for the evaporation, concentration, and drying of materials. In the pharmaceutical industry, steam is used in the sterilization, extraction, and drying of pharmaceuticals. Especially in the production of sterile drugs, high-quality saturated or superheated steam is required for sterilization to ensure the sterility and safety of the drugs. Oil-fired steam boilers provide stable and high-quality steam, meeting the stringent production requirements of the pharmaceutical industry. Oil-fired steam boilers also have important applications in places like hotels and hospitals. In hotels, steam is used for heating, hot water supply, and heating kitchen equipment such as steam sterilizers and steam stoves, providing guests with a comfortable living environment and high-quality service. In hospitals, steam is not only used for heating and hot water supply, but more importantly, for the sterilization of medical equipment. For example, steam sterilizers can efficiently and thoroughly sterilize surgical instruments, syringes, and other medical devices, preventing cross-infection and ensuring medical safety. Steam is also used for humidity control in wards, creating a favorable treatment and recovery environment for patients.
To ensure the long-term safe and efficient operation of oil-fired steam boilers, proper maintenance and correct operation are crucial.
Regarding daily inspections and water treatment, operators need to conduct a comprehensive inspection of the boiler according to the prescribed schedule. First, inspect the boiler's exterior, checking for deformation, corrosion, leaks, etc., in components such as the boiler drum, furnace, and heating surfaces. If any abnormalities are found, address them promptly. Second, inspect the combustion system, checking the fuel oil supply lines for blockages and leaks, the atomization effect of the atomizing device, the burner flame shape for normality, and for any abnormalities such as flameout or backfire. Also check the air supply volume of the air supply system for appropriateness. Next, inspect the control system, verifying the accuracy of various instruments such as pressure gauges, thermometers, and water level gauges, ensuring the parameters are set appropriately, and confirming the sensitivity and reliability of alarm devices. Finally, inspect the steam-water system, checking the operation of the feedwater pump, the effectiveness of the water treatment equipment, and the smooth operation and leak-free nature of valves on the steam pipelines.
Furthermore, water treatment is crucial for the operation of oil-fired steam boilers. Untreated water contains numerous impurities and hardness substances, which, when heated inside the boiler, form scale that adheres to the heating surfaces. Scale has a very low thermal conductivity, which severely hinders heat transfer, reducing the thermal efficiency of the heating surface and increasing fuel consumption. Simultaneously, scale can cause localized overheating of the heating surface, easily leading to overheating damage and shortening the boiler's lifespan. Corrosive substances in the water can corrode the boiler's metal components, forming corrosion pits, reducing the boiler's strength, and even potentially causing boiler leaks and other safety accidents. Therefore, strict treatment of boiler feedwater is essential. Water treatment equipment must remove impurities, hardness substances, and corrosive substances to ensure the feedwater quality meets the boiler's operational requirements. Regular monitoring and analysis of the boiler's water quality are also necessary, with timely adjustments to the water treatment process and reagent dosage based on water quality conditions.
Regarding safety and efficiency optimization, operators must strictly adhere to the boiler's operating procedures and operate the boiler correctly to avoid safety accidents caused by improper operation. For example, before starting the boiler, a comprehensive inspection of all components must be conducted to ensure the equipment is functioning properly before startup. During boiler operation, close monitoring of operating parameters such as pressure, temperature, and water level is essential, and these parameters must not exceed the specified ranges. When shutting down the boiler, the prescribed procedures must be followed to avoid damage caused by improper shutdown. To improve boiler operating efficiency, a series of measures can be taken, such as regularly cleaning the heating surfaces to remove accumulated ash and improve heat transfer efficiency; optimizing the operating parameters of the combustion system to ensure complete combustion of fuel oil and reduce fuel waste; and strengthening boiler insulation to reduce heat loss.
Oil-fired steam boilers differ significantly from gas-fired, electric, and coal-fired boilers in terms of fuel type, operating characteristics, and environmental performance.
In terms of fuel type, oil-fired steam boilers use diesel, heavy oil, or other fuels; gas-fired boilers use natural gas, liquefied petroleum gas, or other gaseous fuels; electric boilers use electricity; and coal-fired boilers use coal. In terms of operating characteristics, oil-fired steam boilers have a relatively fast start-up speed, reaching rated load in a short time. During operation, load adjustment is flexible, allowing for timely adjustments to output power based on steam demand. Gas-fired boilers have an even faster start-up speed, high combustion efficiency, low operating noise, high automation, and are easy to operate. However, they require a stable gas supply; if the gas supply is interrupted, the boiler will not operate normally. Electric boilers have the fastest start-up speed, emit no pollutants during operation, offer high control precision (capable of precise temperature and pressure control), require a small footprint, and are easy to install and maintain. However, their operating costs are higher, they are significantly affected by electricity prices, and they require a high-capacity power supply system. Coal-fired boilers have relatively low fuel costs and a wide range of fuel sources. However, they have a slow start-up speed, inflexible load adjustment, require complex coal conveying and ash removal systems, require a large footprint, have a low degree of automation, and are more difficult to operate.
In terms of environmental performance and overall performance, oil-fired steam boilers produce a certain amount of pollutants such as nitrogen oxides, sulfur dioxide, and particulate matter during combustion, but their emissions are much lower than those of coal-fired boilers. With appropriate exhaust gas treatment devices, pollutant emissions can be further reduced. Their thermal efficiency is relatively high, typically between 80% and 90%, providing a stable steam supply for industrial production. Gas-fired boilers primarily produce carbon dioxide and water as combustion products, with minimal pollutant emissions, making them a relatively clean type of boiler. They also have higher thermal efficiency, generally above 90%, with some high-efficiency gas-fired boilers reaching over 95%. Electric boilers do not produce any pollutants during operation, but their environmental performance depends on the method of electricity generation. If the electricity comes from thermal power generation, it indirectly generates pollutant emissions. Their thermal efficiency is the highest, theoretically reaching 100%, as electrical energy can be almost completely converted into heat energy. Coal-fired boilers produce large amounts of pollutants such as sulfur dioxide, nitrogen oxides, and particulate matter during combustion, causing significant environmental pollution. Their thermal efficiency is relatively low, generally between 70% and 85%, and is greatly affected by coal quality and combustion conditions. With increasingly stringent environmental protection requirements, the application of coal-fired boilers has faced growing restrictions. Many regions have gradually phased out small coal-fired boilers, while large coal-fired boilers require highly efficient desulfurization, denitrification, and dust removal equipment to meet environmental emission standards.
Oil-fired steam boilers, as core industrial thermal energy equipment, provide a stable power source for industrial production by efficiently converting the chemical energy of fuel oil into steam thermal energy. Through precise air-fuel ratio control and multi-mode heat transfer mechanisms, they achieve high efficiency, energy saving, and environmentally friendly operation. Modular design adapts to the steam needs of enterprises of different sizes, ensuring production continuity. In industries such as food, textiles, and chemicals, where requirements for steam quality, stability, and parameters vary, oil-fired steam boilers stand out due to their high thermal efficiency, rapid start-up, and flexible load adjustment. They are particularly favored in areas with limited gas supply or high electricity prices, becoming the preferred industrial heating solution.
With the green transformation of industry, this equipment continues to iterate and upgrade. Through intelligent control systems and low-emission combustion technologies, it meets production needs while adhering to environmental standards. In the future, it will continue to serve as a crucial link in industrial energy supply, promoting high-quality development across various industries.
