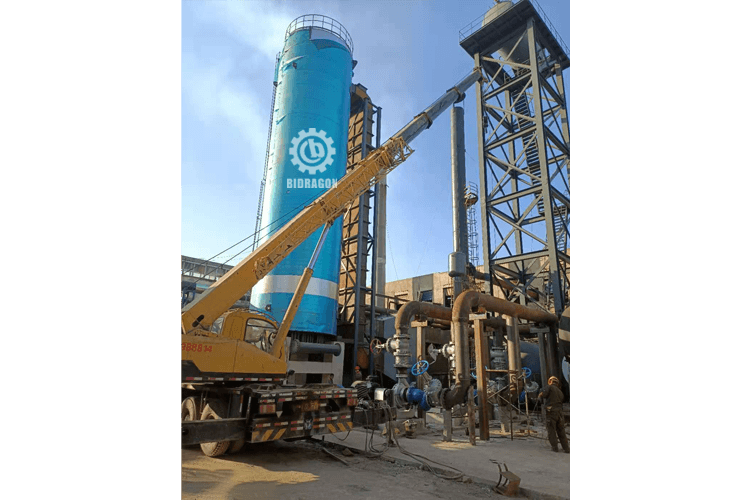

Molten salt furance use molten potassium nitrate and sodium nitrite as heating media. Molten salt heater will heat the powder salt over the melting point until the viscosity of the molten salt allows circulating pump works, after the whole system is under circulating condition, then feed then into the thermal oil heater for further circulating rising temperature to make it to be recycling used. Normal media working temperature is 400-500℃, top working temperature could reach 600℃.
We providing the main body, auxiliary machine and related information files of the heating furnace system to you,is a careful consideration of our stand for your convenience. I hope you can be satisfied and please familiarize with their composition and its role. Check them one by one.1 Diesel (gas) furnace host:

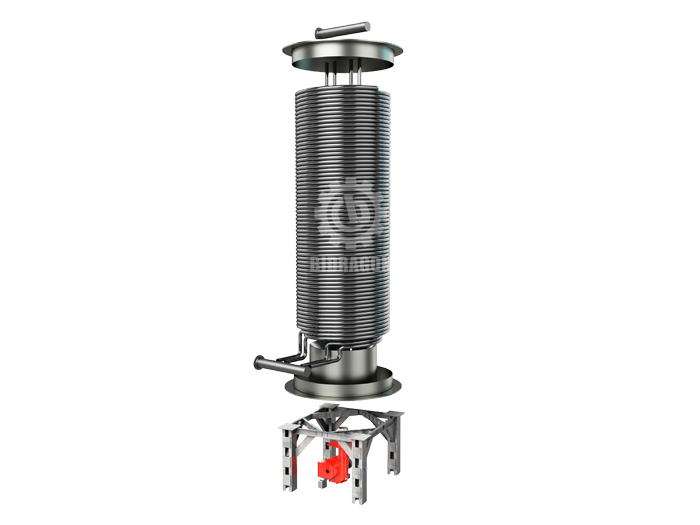

The main host of the diesel (gas) furnace mainly refers to the furnace body and the burner.
2 Auxiliary equipment:
The whole heating furnace system is mainly composed of three parts: heating system, combustion system and electrical control system.
The auxiliary system of the heating system is composed of molten salt storage tank, circulation pump, and connecting pipes and valves.
The auxiliary system of the combustion system consists of diesel (gas) burner (including a diesel (gas) valve group), an explosion-proof door, a chimney, etc., and in some cases, the user should also include an air preheater, an induced draft fan, and the like.
The auxiliary machine of the electrical control system consists of an electrical control cabinet and various measuring components.
Application:
This series furnaces are widely used in the following industries: Petrochemical industry: polymerization, melting, condensation, distillation, de-H2. Oil industry: fat and acid distillation, oil decomposition, concentration, esterification, vacuum deodorization, high temperature steaming, high-grade salad oil. Synthetic fiber industry: polymerization, melting, spinning, stretching, drying. Textile printing and dyeing industry: heat setting, hot melt dyeing, hot melt calendering, high temperature tentering, sizing. Plastics and rubber industry: hot pressing, heat extension, vulcanization molding, calender injection injection machine, rubber paddle mixer, conveyor belt dryer, screw extruder. Paper industry: drying corrugated paper processing, egg trays, food paper shell drying, calenders, rolls. Wood industry: plywood, fiberboard thermoforming, veneer, wood drying, steaming equipment. Building materials industry: highway asphalt heating, gypsum board drying, asphalt concrete heating, concrete component maintenance, drying equipment. Air-conditioning industry: industrial buildings, civil heating for residential and hotel buildings. Detergent industry: cooking boiler, autoclave, spray scrubber, conveyor dryer, fat decomposing equipment distillation tower. Automotive industry: tunnel ovens, degreasing baths, phosphate processing equipment. Electrical equipment industry: calender, plate press, vacuum pot, dryer.
Molten Salt Furnace Technical Parameter:
| Model | RYY(Q)-450Y(Q) | RYY(Q)-1400Y(Q) | RYY(Q)-2000Y(Q) | RYY(Q)-2400Y(Q) | RYY(Q)-3000Y(Q) | RYY(Q)-4700Y(Q) | |
| Rated Thermal Power | kW | 450 | 1400 | 2000 | 2400 | 3000 | 4700 |
| X104 Kcal | 40 | 120 | 160 | 200 | 250 | 400 | |
| Heat Efficiency (≥%) | 80 | 80 | 80 | 80 | 80 | 80 | |
| Designed Pressure (Mpa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
| Medium Max. Temp. (℃) | 450 | 440 | 440 | 440 | 440 | 430 | |
| Salt Volume(m3) | 0.61 | 1.65 | 1.9 | 2.41 | 3.5 | 5 | |
| Piping Connection Inner Diameter(DN) | 65 | 125 | 125 | 150 | 150 | 200 | |
| Total Power (kW) | 11 | 30 | 37 | 37 | 37 | 75 | |
| Dimension (mm) |
W | Ø1670 | Ø 1946 | Ø 2136 | Ø 2340 | Ø 2700 | Ø 2900 |
| H | 4249 | 5629 | 5876 | 6570 | 7365 | 8070 | |
| Total Weight (kg) | 4384 | 7469 | 9725 | 10826 | 15330 | 16657 | |
| Remark 1: Above all data according to standards of natural gas low position calorific value8400kcal/Nm, diesel low position calorific value 10250kcal/kg. Remark 2: Due to continuous improvement, we reserve the right to modify the appearance& specifications. The above parameters are for reference only, please refer to the final drawing. Remark 3: Y for diesel oil fired, Q for gas fired. |
|||||||
