The thermal oil heater is a kind of special industrial furnace which uses natural gas as the fuel, the furnace takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.
Features:
1. High quality welding: all the heating area of thermal oil boiler adopts argon gas shielded fusion welding, and go through X-ray flaw detection and qualified hydrostatic test, and then high ensure welding quality.
2. High efficiency: two return structure enhance the thermal efficiency and lower flue gas temperature and then ensure high heating efficiency.
3. Easy to install and operate: all thermal oil heaters are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes the heater easy and simple to operate.
4. Safety protect function: hot oil outlet temperature display, hot oil inlet temperature display, hot oil outlet pressure display, hot oil inlet pressure display, expansion tank level control and so on, all these ensures our thermal oil boiler safety.
Features:
1. High quality welding: all the heating area of thermal oil boiler adopts argon gas shielded fusion welding, and go through X-ray flaw detection and qualified hydrostatic test, and then high ensure welding quality.
2. High efficiency: two return structure enhance the thermal efficiency and lower flue gas temperature and then ensure high heating efficiency.
3. Easy to install and operate: all thermal oil heaters are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes the heater easy and simple to operate.
4. Safety protect function: hot oil outlet temperature display, hot oil inlet temperature display, hot oil outlet pressure display, hot oil inlet pressure display, expansion tank level control and so on, all these ensures our thermal oil boiler safety.

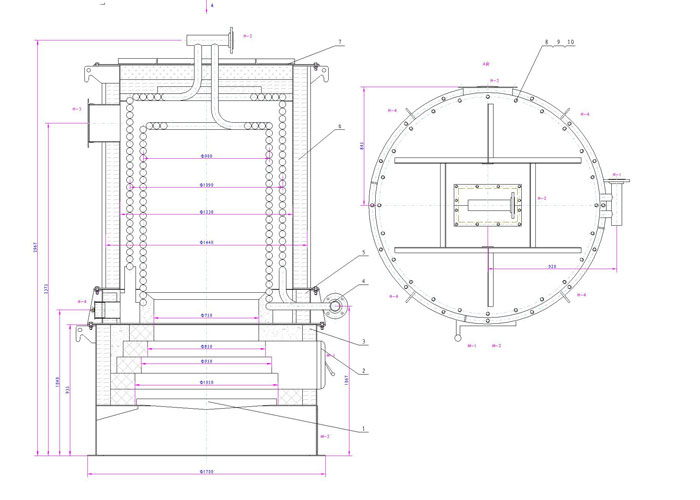

| Type | Fixed grate thermal oil boiler | Chain grated thermal oil boiler |
| Thermal power | 120kw-2000kw | 1400kw-21000kw |
| Feeding manually | Feeding automatically | |
| Model | YGL series | YLL (vertical) and YLW series (horizontal) |
| Fuel | Wood chip, biomass pellet, waste wood, waste material, coal, Wood chip, biomass pellet with limited size, coal with limited size.etc. |
| Item/Model | Thermal power(kcal/h) | Rated power(Kw) | Max. Working temp.(℃) | Medium circulation(M3/H) | Transport size (mm) |
| YGL-120F | 10*104 | 120 | 340 | 0.08 | Φ1150*2385 |
| YGL-240F | 20*104 | 240 | 340 | 0.122 | Φ1300*2650 |
| YGL-350F | 30*104 | 350 | 340 | 0.28 | Φ1700*3060 |
| YGL-500F | 40*104 | 500 | 340 | 0.36 | Φ1700*3475 |
| YGL-700F | 60*104 | 700 | 340 | 0.61 | Φ1960*3805 |
| YGL-1000F | 80*104 | 1000 | 340 | 0.68 | Φ2050*4415 |
| YGL-1200F | 100*104 | 1200 | 340 | 0.93 | Φ2160*4760 |
| YGL-1400F | 120*104 | 1400 | 340 | 1.2 | Φ2290*5445 |
| YGL-2000F | 160*104 | 2000 | 340 | 1.69 | Φ3200*6090 |
| YGW-1400F | 120*104 | 1400 | 340 | 1.2 | Φ3430*3450 |
| Available fuel: coal, wood chip, waste wood. | |||||
